Duplicate from ibm-nasa-geospatial/Prithvi-EO-2.0-600M-TL

Co-authored-by: Benedikt Blumenstiel <blumenstiel@users.noreply.huggingface.co>

.gitattributes

@@ -0,0 +1,37 @@
+*.7z filter=lfs diff=lfs merge=lfs -text
+*.arrow filter=lfs diff=lfs merge=lfs -text
+*.bin filter=lfs diff=lfs merge=lfs -text
+*.bz2 filter=lfs diff=lfs merge=lfs -text
+*.ckpt filter=lfs diff=lfs merge=lfs -text
+*.ftz filter=lfs diff=lfs merge=lfs -text
+*.gz filter=lfs diff=lfs merge=lfs -text
+*.h5 filter=lfs diff=lfs merge=lfs -text
+*.joblib filter=lfs diff=lfs merge=lfs -text
+*.lfs.* filter=lfs diff=lfs merge=lfs -text
+*.mlmodel filter=lfs diff=lfs merge=lfs -text
+*.model filter=lfs diff=lfs merge=lfs -text
+*.msgpack filter=lfs diff=lfs merge=lfs -text
+*.npy filter=lfs diff=lfs merge=lfs -text
+*.npz filter=lfs diff=lfs merge=lfs -text
+*.onnx filter=lfs diff=lfs merge=lfs -text
+*.ot filter=lfs diff=lfs merge=lfs -text
+*.parquet filter=lfs diff=lfs merge=lfs -text
+*.pb filter=lfs diff=lfs merge=lfs -text
+*.pickle filter=lfs diff=lfs merge=lfs -text
+*.pkl filter=lfs diff=lfs merge=lfs -text
+*.pt filter=lfs diff=lfs merge=lfs -text
+*.pth filter=lfs diff=lfs merge=lfs -text
+*.rar filter=lfs diff=lfs merge=lfs -text
+*.safetensors filter=lfs diff=lfs merge=lfs -text
+saved_model/**/* filter=lfs diff=lfs merge=lfs -text
+*.tar.* filter=lfs diff=lfs merge=lfs -text
+*.tar filter=lfs diff=lfs merge=lfs -text
+*.tflite filter=lfs diff=lfs merge=lfs -text
+*.tgz filter=lfs diff=lfs merge=lfs -text
+*.wasm filter=lfs diff=lfs merge=lfs -text
+*.xz filter=lfs diff=lfs merge=lfs -text
+*.zip filter=lfs diff=lfs merge=lfs -text
+*.zst filter=lfs diff=lfs merge=lfs -text
+*tfevents* filter=lfs diff=lfs merge=lfs -text
+*.tif filter=lfs diff=lfs merge=lfs -text
+*.png filter=lfs diff=lfs merge=lfs -text

Prithvi_EO_V2_600M_TL.pt

@@ -0,0 +1,3 @@
+version https://git-lfs.github.com/spec/v1
+oid sha256:7b92c53b0204a76bb775bd8930f045e05776251caa8c83f7367ed0b75b594702
+size 2638217218

README.md

@@ -0,0 +1,87 @@
+---
+license: apache-2.0
+library_name: terratorch
+tags:
+  - Pytorch
+  - Earth Observation
+  - Foundation Model
+  - NASA
+  - IBM
+---
+
+# Prithvi-EO-2.0
+
+Prithvi-EO-2.0 is the second generation EO foundation model jointly developed by IBM, NASA, and Jülich Supercomputing Centre.
+
+## Architecture Overview
+
+Prithvi-EO-2.0 is based on the ViT architecture, pretrained using a masked autoencoder (MAE) approach, with two major modifications as shown in the figure below.
+
+![model_architecture](assets/model_architecture.png)
+
+First, we replaced the 2D patch embeddings and 2D positional embeddings with 3D versions to support inputs with spatiotemporal characteristics, i.e., a sequence of T images of size (H, W). Our 3D patch embeddings consist of a 3D convolutional layer, dividing the 3D input into non-overlapping cubes of size (t, h, w) for time, height, and width dimensions, respectively. For the 3D positional encodings, we first generate 1D sin/cos encodings individually for each dimension and then combine them together into a single, 3D positional encoding.
+
+Second, we considered geolocation (center latitude and longitude) and date of acquisition (year and day-of-year ranging 1-365) in the pretraining of the TL model versions. Both encoder and decoder receive time and location information for each sample and encodes them independently using 2D sin/cos encoding. They are added to the embedded tokens via a weighted sum with learned weights: one for time and one for location and separate weights for encoder and decoder. Since this metadata is often not available, we added a drop mechanism during pretraining that randomly drops the geolocation and/or the temporal data to help the model learn how to handle the absence of this information.
+
+## Pre-trained Models
+
+| Model | Details | Weights                                                                                                                                                                    |
+| ------------- | ------------- |----------------------------------------------------------------------------------------------------------------------------------------------------------------------------|
+|Prithvi-EO-2.0-tiny-TL | Pretrained 5M parameter model with temporal and location embeddings                                      | [https://huggingface.co/ibm-nasa-geospatial/Prithvi-EO-2.0-tiny-TL](https://huggingface.co/ibm-nasa-geospatial/Prithvi-EO-2.0-tiny-TL)    |
+|Prithvi-EO-2.0-100M-TL | Pretrained 100M parameter model with temporal and location embeddings                                      | [https://huggingface.co/ibm-nasa-geospatial/Prithvi-EO-2.0-100M-TL](https://huggingface.co/ibm-nasa-geospatial/Prithvi-EO-2.0-100M-TL)    |
+|Prithvi-EO-2.0-300M   | Pretrained 300M parameter model  | [https://huggingface.co/ibm-nasa-geospatial/Prithvi-EO-2.0-300M](https://huggingface.co/ibm-nasa-geospatial/Prithvi-EO-2.0-300M)                                           |
+|Prithvi-EO-2.0-300M-TL   | Pretrained 300M parameter model with temporal and location embeddings | [https://huggingface.co/ibm-nasa-geospatial/Prithvi-EO-2.0-300M-TL](https://huggingface.co/ibm-nasa-geospatial/Prithvi-EO-2.0-300M-TL) |
+|Prithvi-EO-2.0-600M   | Pretrained 600M parameter model  | [https://huggingface.co/ibm-nasa-geospatial/Prithvi-EO-2.0-600M](https://huggingface.co/ibm-nasa-geospatial/Prithvi-EO-2.0-600M) |                                          |
+|Prithvi-EO-2.0-600M-TL   | Pretrained 600M parameter model with temporal and location embeddings | [https://huggingface.co/ibm-nasa-geospatial/Prithvi-EO-2.0-600M-TL](https://huggingface.co/ibm-nasa-geospatial/Prithvi-EO-2.0-600M-TL) |
+
+The models were pre-trained at the Jülich Supercomputing Centre with NASA's HLS V2 product (30m granularity) using 4.2M samples with six bands in the following order: Blue, Green, Red, Narrow NIR, SWIR, SWIR 2.
+
+## Benchmarking

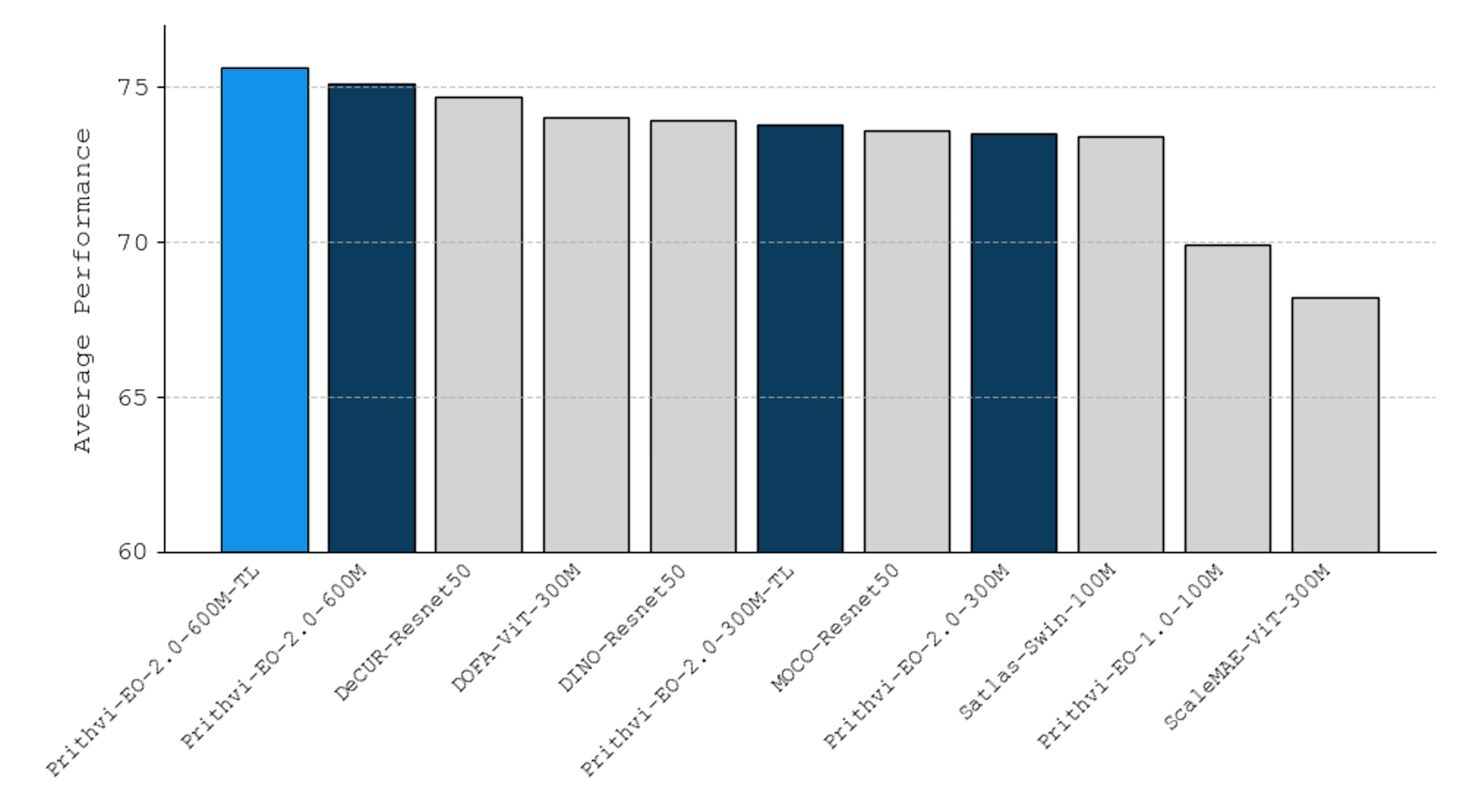

+We validated the Prithvi-EO-2.0 models through extensive experiments using [GEO-bench](https://github.com/ServiceNow/geo-bench). Prithvi-EO-2.0-600M-TL outperforms the previous Prithvi-EO model by 8% across a range of tasks. It also outperforms six other geospatial foundation models when benchmarked on remote sensing tasks from different domains and resolutions (i.e. from 0.1m to 15m).
+
+![overall_v2_600_tl.png](assets%2Foverall_v2_600_tl.png)
+
+## Demo and inference
+We provide a **demo** running Prithvi-EO-2.0-300M-TL [here](https://huggingface.co/spaces/ibm-nasa-geospatial/Prithvi-EO-2.0-Demo).
+
+There is also an inference script (`inference.py`) that allows to run the image reconstruction on a set of HLS images assumed to be from the same location at different timestamps (see example below). These should be provided in chronological order in geotiff format, including the channels described above (Blue, Green, Red, Narrow NIR, SWIR 1, SWIR 2) in reflectance units.
+
+```
+python inference.py --data_files t1.tif t2.tif t3.tif t4.tif --input_indices <optional, space separated 0-based indices of the six Prithvi channels in your input>
+```
+
+## Finetuning
+
+You can finetune the model using [TerraTorch](https://github.com/IBM/terratorch). Examples of configs and notebooks are provided in the project repository: [github.com/NASA-IMPACT/Prithvi-EO-2.0](https://github.com/NASA-IMPACT/Prithvi-EO-2.0#fine-tuning).
+Example Notebooks:
+
+[Multitemporal Crop Segmentation](https://github.com/NASA-IMPACT/Prithvi-EO-2.0/blob/main/examples/example_multitemporalcrop.ipynb)   [<b><i>>>Try it on Colab<<</i></b>](https://colab.research.google.com/github/NASA-IMPACT/Prithvi-EO-2.0/blob/main/examples/example_multitemporalcrop.ipynb) (Choose T4 GPU runtime)
+[Landslide Segmentation](https://github.com/NASA-IMPACT/Prithvi-EO-2.0/blob/main/examples/example_landslide4sense.ipynb) [<b><i>>>Try it on Colab<<</i></b>](https://colab.research.google.com/github/NASA-IMPACT/Prithvi-EO-2.0/blob/main/examples/example_landslide4sense.ipynb) (Choose T4 GPU runtime)
+[Carbon Flux Prediction (Regression)](https://github.com/NASA-IMPACT/Prithvi-EO-2.0/blob/main/examples/carbon_flux/main_flux_finetune_baselines_trainer.ipynb)
+
+If you plan to use Prithvi in your custom PyTorch pipeline, you can build the backbone with:
+```python
+from terratorch.registry import BACKBONE_REGISTRY
+
+model = BACKBONE_REGISTRY.build("prithvi_eo_v2_600_tl", pretrained=True)
+```
+
+Find more information on model usage in our [Prithvi Docs](https://ibm.github.io/terratorch/stable/guide/prithvi_eo/).
+
+
+### Feedback
+
+Your feedback is invaluable to us. If you have any feedback about the model, please feel free to share it with us. You can do this by starting a discussion in this HF repository or submitting an issue to [TerraTorch](https://github.com/IBM/terratorch) on GitHub.
+
+### Citation
+
+If this model helped your research, please cite [Prithvi-EO-2.0](https://arxiv.org/abs/2412.02732) in your publications.
+
+```
+@article{Prithvi-EO-V2-preprint,
+    author          = {Szwarcman, Daniela and Roy, Sujit and Fraccaro, Paolo and Gíslason, Þorsteinn Elí and Blumenstiel, Benedikt and Ghosal, Rinki and de Oliveira, Pedro Henrique and de Sousa Almeida, João Lucas and Sedona, Rocco and Kang, Yanghui and Chakraborty, Srija and Wang, Sizhe and Kumar, Ankur and Truong, Myscon and Godwin, Denys and Lee, Hyunho and Hsu, Chia-Yu and Akbari Asanjan, Ata and Mujeci, Besart and Keenan, Trevor and Arévolo, Paulo and Li, Wenwen and Alemohammad, Hamed and Olofsson, Pontus and Hain, Christopher and Kennedy, Robert and Zadrozny, Bianca and Cavallaro, Gabriele and Watson, Campbell and Maskey, Manil and Ramachandran, Rahul and Bernabe Moreno, Juan},
+    title           = {{Prithvi-EO-2.0: A Versatile Multi-Temporal Foundation Model for Earth Observation Applications}},
+    journal         = {arXiv preprint arXiv:2412.02732},
+    year            = {2024}
+}
+```

config.json

@@ -0,0 +1,26 @@
+{
+  "architecture": "prithvi_eo_v2_600_tl",
+  "num_features": 1024,
+  "pretrained_cfg": {
+    "img_size": 224,
+    "num_frames": 4,
+    "patch_size": [1, 14, 14],
+    "in_chans": 6,
+    "embed_dim": 1280,
+    "depth": 32,
+    "num_heads": 16,
+    "decoder_embed_dim": 512,
+    "decoder_depth": 8,
+    "decoder_num_heads": 16,
+    "mlp_ratio": 4,
+    "coords_encoding": ["time", "location"],
+    "coords_scale_learn": true,
+    "mask_ratio": 0.75,
+    "norm_pix_loss": false,
+    "bands": ["B02", "B03", "B04", "B05", "B06", "B07"],
+    "mean": [1087.0, 1342.0, 1433.0, 2734.0, 1958.0, 1363.0],
+    "std": [2248.0, 2179.0, 2178.0, 1850.0, 1242.0, 1049.0],
+    "origin_url": "https://huggingface.co/ibm-nasa-geospatial/Prithvi-EO-2.0-600M-TL",
+    "paper_ids": "arXiv:X.X"
+  }
+}

inference.py

@@ -0,0 +1,523 @@
+import argparse
+import functools
+import os
+from typing import List, Union
+import re
+import datetime
+import numpy as np
+import pandas as pd
+import rasterio
+import torch
+import yaml
+from einops import rearrange
+
+from functools import partial
+from prithvi_mae import PrithviMAE
+
+NO_DATA = -9999
+NO_DATA_FLOAT = 0.0001
+OFFSET = 0
+PERCENTILE = 99.9
+
+
+def process_channel_group(orig_img, new_img, channels, mean, std):
+    """Process *orig_img* and *new_img* for RGB visualization. Each band is rescaled back to the
+        original range using *data_mean* and *data_std* and then lowest and highest percentiles are
+        removed to enhance contrast. Data is rescaled to (0, 1) range and stacked channels_first.
+
+    Args:
+        orig_img: torch.Tensor representing original image (reference) with shape = (bands, H, W).
+        new_img: torch.Tensor representing image with shape = (bands, H, W).
+        channels: list of indices representing RGB channels.
+        mean: list of mean values for each band.
+        std: list of std values for each band.
+
+    Returns:
+        torch.Tensor with shape (num_channels, height, width) for original image
+        torch.Tensor with shape (num_channels, height, width) for the other image
+    """
+
+    mean = torch.tensor(np.asarray(mean)[:, None, None])  # C H W
+    std = torch.tensor(np.asarray(std)[:, None, None])
+    orig_img = orig_img[channels, ...]
+    valid_mask = torch.ones_like(orig_img, dtype=torch.bool)
+    valid_mask[orig_img == NO_DATA_FLOAT] = False
+
+    # Back to original data range
+    orig_img = (orig_img * std[channels]) + mean[channels]
+    new_img = (new_img[channels, ...] * std[channels]) + mean[channels]
+
+    # Rescale (enhancing contrast)
+    max_value = max(3000, np.percentile(orig_img[valid_mask], PERCENTILE))
+    min_value = OFFSET
+
+    orig_img = torch.clamp((orig_img - min_value) / (max_value - min_value), 0, 1)
+    new_img = torch.clamp((new_img - min_value) / (max_value - min_value), 0, 1)
+
+    # No data as zeros
+    orig_img[~valid_mask] = 0
+    new_img[~valid_mask] = 0
+
+    return orig_img, new_img
+
+
+def read_geotiff(file_path: str):
+    """Read all bands from *file_path* and return image + meta info.
+
+    Args:
+        file_path: path to image file.
+
+    Returns:
+        np.ndarray with shape (bands, height, width)
+        meta info dict
+    """
+
+    with rasterio.open(file_path) as src:
+        img = src.read()
+        meta = src.meta
+        try:
+            coords = src.lnglat()
+        except:
+            # Cannot read coords
+            coords = None
+
+    return img, meta, coords
+
+
+def save_geotiff(image, output_path: str, meta: dict):
+    """Save multi-band image in Geotiff file.
+
+    Args:
+        image: np.ndarray with shape (bands, height, width)
+        output_path: path where to save the image
+        meta: dict with meta info.
+    """
+
+    with rasterio.open(output_path, "w", **meta) as dest:
+        for i in range(image.shape[0]):
+            dest.write(image[i, :, :], i + 1)
+
+    return
+
+
+def _convert_np_uint8(float_image: torch.Tensor):
+    image = float_image.numpy() * 255.0
+    image = image.astype(dtype=np.uint8)
+
+    return image
+
+
+def load_example(
+    file_paths: List[str],
+    mean: List[float],
+    std: List[float],
+    indices: Union[list[int], None] = None,
+):
+    """Build an input example by loading images in *file_paths*.
+
+    Args:
+        file_paths: list of file paths .
+        mean: list containing mean values for each band in the images in *file_paths*.
+        std: list containing std values for each band in the images in *file_paths*.
+
+    Returns:
+        np.array containing created example
+        list of meta info for each image in *file_paths*
+    """
+
+    imgs = []
+    metas = []
+    temporal_coords = []
+    location_coords = []
+
+    for file in file_paths:
+        img, meta, coords = read_geotiff(file)
+
+        # Rescaling (don't normalize on nodata)
+        img = np.moveaxis(img, 0, -1)  # channels last for rescaling
+        if indices is not None:
+            img = img[..., indices]
+        img = np.where(img == NO_DATA, NO_DATA_FLOAT, (img - mean) / std)
+
+        imgs.append(img)
+        metas.append(meta)
+        if coords is not None:
+            location_coords.append(coords)
+
+        try:
+            match = re.search(r'(\d{7,8}T\d{6})', file)
+            if match:
+                    year = int(match.group(1)[:4])
+                    julian_day = match.group(1).split('T')[0][4:]
+                    if len(julian_day) == 3:
+                        julian_day = int(julian_day)
+                    else:
+                        julian_day = datetime.datetime.strptime(julian_day, '%m%d').timetuple().tm_yday
+            temporal_coords.append([year, julian_day])
+        except Exception as e:
+            print(f'Could not extract timestamp for {file} ({e})')
+
+    imgs = np.stack(imgs, axis=0)  # num_frames, H, W, C
+    imgs = np.moveaxis(imgs, -1, 0).astype("float32")  # C, num_frames, H, W
+    imgs = np.expand_dims(imgs, axis=0)  # add batch di
+
+    return imgs, temporal_coords, location_coords, metas
+
+
+def run_model(
+    model: torch.nn.Module,
+    input_data: torch.Tensor,
+    temporal_coords: None | torch.Tensor,
+    location_coords: None | torch.Tensor,
+    mask_ratio: float,
+    device: torch.device,
+):
+    """Run *model* with *input_data* and create images from output tokens (mask, reconstructed + visible).
+
+    Args:
+        model: MAE model to run.
+        input_data: torch.Tensor with shape (B, C, T, H, W).
+        mask_ratio: mask ratio to use.
+        device: device where model should run.
+
+    Returns:
+        3 torch.Tensor with shape (B, C, T, H, W).
+    """
+
+    with torch.no_grad():
+        x = input_data.to(device)
+
+        _, pred, mask = model(x, temporal_coords, location_coords, mask_ratio)
+
+    # Create mask and prediction images (un-patchify)
+    mask_img = (
+        model.unpatchify(mask.unsqueeze(-1).repeat(1, 1, pred.shape[-1])).detach().cpu()
+    )
+    pred_img = model.unpatchify(pred).detach().cpu()
+
+    # Mix visible and predicted patches
+    rec_img = input_data.clone()
+    rec_img[mask_img == 1] = pred_img[
+        mask_img == 1
+    ]  # binary mask: 0 is keep, 1 is remove
+
+    # Switch zeros/ones in mask images so masked patches appear darker in plots (better visualization)
+    mask_img = (~(mask_img.to(torch.bool))).to(torch.float)
+
+    return rec_img, mask_img
+
+
+def save_rgb_imgs(
+    input_img, rec_img, mask_img, channels, mean, std, output_dir, meta_data
+):
+    """Wrapper function to save Geotiff images (original, reconstructed, masked) per timestamp.
+
+    Args:
+        input_img: input torch.Tensor with shape (C, T, H, W).
+        rec_img: reconstructed torch.Tensor with shape (C, T, H, W).
+        mask_img: mask torch.Tensor with shape (C, T, H, W).
+        channels: list of indices representing RGB channels.
+        mean: list of mean values for each band.
+        std: list of std values for each band.
+        output_dir: directory where to save outputs.
+        meta_data: list of dicts with geotiff meta info.
+    """
+
+    for t in range(input_img.shape[1]):
+        rgb_orig, rgb_pred = process_channel_group(
+            orig_img=input_img[:, t, :, :],
+            new_img=rec_img[:, t, :, :],
+            channels=channels,
+            mean=mean,
+            std=std,
+        )
+
+        rgb_mask = mask_img[channels, t, :, :] * rgb_orig
+
+        # Saving images
+
+        save_geotiff(
+            image=_convert_np_uint8(rgb_orig),
+            output_path=os.path.join(output_dir, f"original_rgb_t{t}.tiff"),
+            meta=meta_data[t],
+        )
+
+        save_geotiff(
+            image=_convert_np_uint8(rgb_pred),
+            output_path=os.path.join(output_dir, f"predicted_rgb_t{t}.tiff"),
+            meta=meta_data[t],
+        )
+
+        save_geotiff(
+            image=_convert_np_uint8(rgb_mask),
+            output_path=os.path.join(output_dir, f"masked_rgb_t{t}.tiff"),
+            meta=meta_data[t],
+        )
+
+
+def save_imgs(rec_img, mask_img, mean, std, output_dir, meta_data):
+    """Wrapper function to save Geotiff images (reconstructed, mask) per timestamp.
+
+    Args:
+        rec_img: reconstructed torch.Tensor with shape (C, T, H, W).
+        mask_img: mask torch.Tensor with shape (C, T, H, W).
+        mean: list of mean values for each band.
+        std: list of std values for each band.
+        output_dir: directory where to save outputs.
+        meta_data: list of dicts with geotiff meta info.
+    """
+
+    mean = torch.tensor(np.asarray(mean)[:, None, None])  # C H W
+    std = torch.tensor(np.asarray(std)[:, None, None])
+
+    for t in range(rec_img.shape[1]):
+        # Back to original data range
+        rec_img_t = ((rec_img[:, t, :, :] * std) + mean).to(torch.int16)
+
+        mask_img_t = mask_img[:, t, :, :].to(torch.int16)
+
+        # Saving images
+
+        save_geotiff(
+            image=rec_img_t,
+            output_path=os.path.join(output_dir, f"predicted_t{t}.tiff"),
+            meta=meta_data[t],
+        )
+
+        save_geotiff(
+            image=mask_img_t,
+            output_path=os.path.join(output_dir, f"mask_t{t}.tiff"),
+            meta=meta_data[t],
+        )
+
+
+def main(
+    data_files: List[str],
+    config_path: str,
+    checkpoint: str,
+    output_dir: str,
+    rgb_outputs: bool,
+    mask_ratio: float = None,
+    input_indices: list[int] = None,
+):
+    os.makedirs(output_dir, exist_ok=True)
+
+    # Get parameters --------
+
+    import json
+    with open(config_path, "r") as f:
+        config = yaml.safe_load(f)['pretrained_cfg']
+
+    batch_size = 1
+    bands = config['bands']
+    num_frames = len(data_files)
+    mean = config['mean']
+    std = config['std']
+    coords_encoding = config['coords_encoding']
+    img_size = config['img_size']
+    mask_ratio = mask_ratio or config['mask_ratio']
+
+    print(
+        f"\nTreating {len(data_files)} files as {len(data_files)} time steps from the same location\n"
+    )
+    if len(data_files) != 4:
+        print(
+            "The original model was trained for four time steps. \nResults with different numbers of time steps may vary"
+        )
+
+    if torch.cuda.is_available():
+        device = torch.device("cuda")
+    else:
+        device = torch.device("cpu")
+
+    print(f"Using {device} device.\n")
+
+    # Loading data ---------------------------------------------------------------------------------
+
+    input_data, temporal_coords, location_coords, meta_data = load_example(
+        file_paths=data_files, indices=input_indices, mean=mean, std=std
+    )
+
+    if len(temporal_coords) != num_frames and 'time' in coords_encoding:
+        coords_encoding.pop('time')
+    if not len(location_coords) and 'location' in coords_encoding:
+        coords_encoding.pop('location')
+
+    # Create model and load checkpoint -------------------------------------------------------------
+
+    config.update(
+        coords_encoding=coords_encoding,
+        num_frames=num_frames,
+        in_chans=len(bands),
+    )
+
+    model = PrithviMAE(**config)
+
+    total_params = sum(p.numel() for p in model.parameters() if p.requires_grad)
+    print(f"\n--> Model has {total_params:,} parameters.\n")
+
+    model.to(device)
+
+    state_dict = torch.load(checkpoint, map_location=device, weights_only=True)
+    # discard fixed pos_embedding weight
+    for k in list(state_dict.keys()):
+        if 'pos_embed' in k:
+            del state_dict[k]
+    model.load_state_dict(state_dict, strict=False)
+    print(f"Loaded checkpoint from {checkpoint}")
+
+    # Running model --------------------------------------------------------------------------------
+
+    model.eval()
+    channels = [bands.index(b) for b in ["B04", "B03", "B02"]]  # BGR -> RGB
+
+    # Reflect pad if not divisible by img_size
+    original_h, original_w = input_data.shape[-2:]
+    pad_h = img_size - (original_h % img_size)
+    pad_w = img_size - (original_w % img_size)
+    input_data = np.pad(
+        input_data, ((0, 0), (0, 0), (0, 0), (0, pad_h), (0, pad_w)), mode="reflect"
+    )
+
+    # Build sliding window
+    batch = torch.tensor(input_data, device="cpu")
+    windows = batch.unfold(3, img_size, img_size).unfold(4, img_size, img_size)
+    h1, w1 = windows.shape[3:5]
+    windows = rearrange(
+        windows, "b c t h1 w1 h w -> (b h1 w1) c t h w", h=img_size, w=img_size
+    )
+
+    # Split into batches if number of windows > batch_size
+    num_batches = windows.shape[0] // batch_size if windows.shape[0] > batch_size else 1
+    windows = torch.tensor_split(windows, num_batches, dim=0)
+
+    temporal_coords = torch.Tensor(temporal_coords, device=device).unsqueeze(0)
+    location_coords = torch.Tensor(location_coords[0], device=device).unsqueeze(0)
+
+    # Run model
+    rec_imgs = []
+    mask_imgs = []
+    for x in windows:
+        rec_img, mask_img = run_model(model, x, temporal_coords, location_coords, mask_ratio, device)
+        rec_imgs.append(rec_img)
+        mask_imgs.append(mask_img)
+
+    rec_imgs = torch.concat(rec_imgs, dim=0)
+    mask_imgs = torch.concat(mask_imgs, dim=0)
+
+    # Build images from patches
+    rec_imgs = rearrange(
+        rec_imgs,
+        "(b h1 w1) c t h w -> b c t (h1 h) (w1 w)",
+        h=img_size,
+        w=img_size,
+        b=1,
+        c=len(bands),
+        t=num_frames,
+        h1=h1,
+        w1=w1,
+    )
+    mask_imgs = rearrange(
+        mask_imgs,
+        "(b h1 w1) c t h w -> b c t (h1 h) (w1 w)",
+        h=img_size,
+        w=img_size,
+        b=1,
+        c=len(bands),
+        t=num_frames,
+        h1=h1,
+        w1=w1,
+    )
+
+    # Cut padded images back to original size
+    rec_imgs_full = rec_imgs[..., :original_h, :original_w]
+    mask_imgs_full = mask_imgs[..., :original_h, :original_w]
+    batch_full = batch[..., :original_h, :original_w]
+
+    # Build output images
+    if rgb_outputs:
+        for d in meta_data:
+            d.update(count=3, dtype="uint8", compress="lzw", nodata=0)
+
+        save_rgb_imgs(
+            batch_full[0, ...],
+            rec_imgs_full[0, ...],
+            mask_imgs_full[0, ...],
+            channels,
+            mean,
+            std,
+            output_dir,
+            meta_data,
+        )
+    else:
+        for d in meta_data:
+            d.update(compress="lzw", nodata=0)
+
+        save_imgs(
+            rec_imgs_full[0, ...],
+            mask_imgs_full[0, ...],
+            mean,
+            std,
+            output_dir,
+            meta_data,
+        )
+
+    print("Done!")
+
+
+if __name__ == "__main__":
+    parser = argparse.ArgumentParser("MAE run inference", add_help=False)
+
+    parser.add_argument(
+        "--data_files",
+        type=str,
+        nargs="+",
+        default=["examples/Mexico_HLS.S30.T13REM.2018026T173609.v2.0_cropped.tif",
+                 "examples/Mexico_HLS.S30.T13REM.2018106T172859.v2.0_cropped.tif",
+                 "examples/Mexico_HLS.S30.T13REM.2018201T172901.v2.0_cropped.tif",
+                 "examples/Mexico_HLS.S30.T13REM.2018266T173029.v2.0_cropped.tif",
+                 ],
+        help="Path to the data files. Assumes multi-band files.",
+    )
+    parser.add_argument(
+        "--config_path",
+        "-c",
+        type=str,
+        default="config.json",
+        help="Path to json file containing model training parameters.",
+    )
+    parser.add_argument(
+        "--checkpoint",
+        type=str,
+        default="Prithvi_EO_V2_600M_TL.pt",
+        help="Path to a checkpoint file to load from.",
+    )
+    parser.add_argument(
+        "--output_dir",
+        type=str,
+        default="output",
+        help="Path to the directory where to save outputs.",
+    )
+    parser.add_argument(
+        "--mask_ratio",
+        default=0.75,
+        type=float,
+        help="Masking ratio (percentage of removed patches). "
+        "If None (default) use same value used for pretraining.",
+    )
+    parser.add_argument(
+        "--input_indices",
+        default=None,
+        type=int,
+        nargs="+",
+        help="0-based indices of channels to be selected from the input. By default takes all.",
+    )
+    parser.add_argument(
+        "--rgb_outputs",
+        action="store_true",
+        help="If present, output files will only contain RGB channels. "
+        "Otherwise, all bands will be saved.",
+    )
+    args = parser.parse_args()
+
+    main(**vars(args))

prithvi_mae.py

@@ -0,0 +1,766 @@
+# Copyright (c) IBM Corp. 2024. All rights reserved.
+#
+# Licensed under the Apache License, Version 2.0 (the "License");
+# you may not use this file except in compliance with the License.
+# You may obtain a copy of the License at
+#
+#     http://www.apache.org/licenses/LICENSE-2.0
+#
+# Unless required by applicable law or agreed to in writing, software
+# distributed under the License is distributed on an "AS IS" BASIS,
+# WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
+# See the License for the specific language governing permissions and
+# limitations under the License.
+# --------------------------------------------------------
+# References:
+# timm: https://github.com/rwightman/pytorch-image-models/tree/master/timm
+# transformers: https://github.com/huggingface/transformers
+# --------------------------------------------------------
+
+import warnings
+import logging
+import numpy as np
+import torch
+import torch.nn as nn
+from einops import rearrange
+from timm.layers import to_2tuple
+from timm.models.vision_transformer import Block
+
+logger = logging.getLogger(__name__)
+
+
+def get_3d_sincos_pos_embed(embed_dim, grid_size, add_cls_token=False):
+    """
+    Create 3D sin/cos positional embeddings.
+
+    Args:
+        embed_dim (int):
+            Embedding dimension.
+        grid_size (tuple[int, int, int] | list[int]):
+            The grid depth, height and width.
+        add_cls_token (bool, *optional*, defaults to False):
+            Whether or not to add a classification (CLS) token.
+
+    Returns:
+        (`torch.FloatTensor` of shape (grid_size[0]*grid_size[1]*grid_size[2], embed_dim) or
+        (1+grid_size[0]*grid_size[1]*grid_size[2], embed_dim): the position embeddings (with or without cls token)
+    """
+
+    assert embed_dim % 16 == 0
+
+    t_size, h_size, w_size = grid_size
+
+    w_embed_dim = embed_dim // 16 * 6
+    h_embed_dim = embed_dim // 16 * 6
+    t_embed_dim = embed_dim // 16 * 4
+
+    w_pos_embed = get_1d_sincos_pos_embed_from_grid(w_embed_dim, np.arange(w_size))
+    h_pos_embed = get_1d_sincos_pos_embed_from_grid(h_embed_dim, np.arange(h_size))
+    t_pos_embed = get_1d_sincos_pos_embed_from_grid(t_embed_dim, np.arange(t_size))
+
+    w_pos_embed = np.tile(w_pos_embed, (t_size * h_size, 1))
+    h_pos_embed = np.tile(np.repeat(h_pos_embed, w_size, axis=0), (t_size, 1))
+    t_pos_embed = np.repeat(t_pos_embed, h_size * w_size, axis=0)
+
+    pos_embed = np.concatenate((w_pos_embed, h_pos_embed, t_pos_embed), axis=1)
+
+    if add_cls_token:
+        pos_embed = np.concatenate([np.zeros([1, embed_dim]), pos_embed], axis=0)
+    return pos_embed
+
+
+def get_1d_sincos_pos_embed_from_grid(embed_dim, pos):
+    """
+    embed_dim: output dimension for each position pos: a list of positions to be encoded: size (M,) out: (M, D)
+    """
+    if embed_dim % 2 != 0:
+        raise ValueError("embed_dim must be even")
+
+    omega = np.arange(embed_dim // 2, dtype=float)
+    omega /= embed_dim / 2.0
+    omega = 1.0 / 10000**omega  # (D/2,)
+
+    pos = pos.reshape(-1)  # (M,)
+    out = np.einsum("m,d->md", pos, omega)  # (M, D/2), outer product
+
+    emb_sin = np.sin(out)  # (M, D/2)
+    emb_cos = np.cos(out)  # (M, D/2)
+
+    emb = np.concatenate([emb_sin, emb_cos], axis=1)  # (M, D)
+    return emb
+
+
+def _get_1d_sincos_embed_from_grid_torch(embed_dim: int, pos: torch.Tensor):
+    """ Modified torch version of *get_1d_sincos_pos_embed_from_grid()*.
+
+        embed_dim: output dimension for each position
+        pos: a list of positions to be encoded: size (M,) - must be float dtype!
+        out: (M, D)
+    """
+    assert embed_dim % 2 == 0
+    assert pos.dtype in [torch.float32, torch.float16, torch.bfloat16]
+
+    omega = torch.arange(embed_dim // 2, dtype=pos.dtype).to(pos.device)
+    omega /= embed_dim / 2.0
+    omega = 1.0 / 10000**omega  # (D/2,)
+
+    pos = pos.reshape(-1)  # (M,)
+    out = torch.einsum("m,d->md", pos, omega)  # (M, D/2), outer product
+
+    emb_sin = torch.sin(out)  # (M, D/2)
+    emb_cos = torch.cos(out)  # (M, D/2)
+
+    emb = torch.cat([emb_sin, emb_cos], dim=1)  # (M, D)
+
+    return emb
+
+
+def _init_weights(module):
+    """Initialize the weights"""
+    if isinstance(module, nn.Linear):
+        nn.init.xavier_uniform_(module.weight)
+        if module.bias is not None:
+            module.bias.data.zero_()
+    elif isinstance(module, nn.LayerNorm):
+        module.bias.data.zero_()
+        module.weight.data.fill_(1.0)
+
+
+def _interpolate_pos_encoding(
+        pos_embed: torch.Tensor,
+        grid_size: tuple[int, int, int] | list[int],
+        patch_size: tuple[int, int, int] | list[int],
+        shape: tuple[int, int, int],
+        embed_dim: int,
+):
+    """
+    Adapted from:
+    - transformers.models.vit.modeling_vit.ViTEmbeddings.interpolate_pos_encoding,
+    - https://github.com/facebookresearch/dino/blob/de9ee3df6cf39fac952ab558447af1fa1365362a/vision_transformer.py#L174-L194
+    """
+    t, h, w = shape
+    t_patches = t // patch_size[0]
+    h_patches = h // patch_size[1]
+    w_patches = w // patch_size[2]
+
+    if [t_patches, h_patches, w_patches] == grid_size:
+        # No interpolation needed
+        return pos_embed
+    if t_patches != grid_size[0]:
+        # Re-compute pos embedding to handle changed num_frames
+        new_grid_size = (t_patches, *grid_size[1:])
+        new_pos_embed = get_3d_sincos_pos_embed(pos_embed.shape[-1], new_grid_size, add_cls_token=True)
+        new_pos_embed = torch.from_numpy(new_pos_embed).float().unsqueeze(0)
+    else:
+        new_grid_size = grid_size
+        new_pos_embed = pos_embed
+
+    class_pos_embed, patch_pos_embed = new_pos_embed[:, :1], new_pos_embed[:, 1:]
+
+    patch_pos_embed = patch_pos_embed.reshape(*new_grid_size, embed_dim).permute(0, 3, 1, 2)
+
+    patch_pos_embed = nn.functional.interpolate(
+        patch_pos_embed,
+        size=(h_patches, w_patches),
+        mode='bicubic',
+        align_corners=True,
+    )
+    patch_pos_embed = patch_pos_embed.permute(0, 2, 3, 1).view(1, -1, embed_dim)
+
+    return torch.cat((class_pos_embed, patch_pos_embed), dim=1)
+
+
+class PatchEmbed(nn.Module):
+    """3D version of timm.models.vision_transformer.PatchEmbed"""
+    def __init__(
+            self,
+            input_size: tuple[int, int, int] = (1, 224, 224),
+            patch_size: tuple[int, int, int] = (1, 16, 16),
+            in_chans: int = 3,
+            embed_dim: int = 768,
+            norm_layer: nn.Module | None = None,
+            flatten: bool = True,
+            bias: bool = True,
+    ):
+        super().__init__()
+        self.input_size = input_size
+        self.patch_size = patch_size
+        self.grid_size = [s // p for s, p in zip(self.input_size, self.patch_size)]
+        assert self.grid_size >= [1, 1, 1], "Patch size is bigger than input size."
+        self.num_patches = self.grid_size[0] * self.grid_size[1] * self.grid_size[2]
+        self.flatten = flatten
+
+        self.proj = nn.Conv3d(in_chans, embed_dim, kernel_size=patch_size, stride=patch_size, bias=bias)
+        self.norm = norm_layer(embed_dim) if norm_layer else nn.Identity()
+
+    def forward(self, x):
+        B, C, T, H, W = x.shape
+
+        if T / self.patch_size[0] % 1 or H / self.patch_size[1] % 1 or W / self.patch_size[2] % 1:
+            warnings.warn(f"Input {x.shape[-3:]} is not divisible by patch size {self.patch_size}."
+                          f"The border will be ignored, add backbone_padding for pixel-wise tasks.")
+
+        x = self.proj(x)
+        if self.flatten:
+            x = x.flatten(2).transpose(1, 2)  # B,C,T,H,W -> B,C,L -> B,L,C
+        x = self.norm(x)
+        return x
+
+
+class TemporalEncoder(nn.Module):
+    def __init__(self, embed_dim: int, trainable_scale: bool = False):
+        super().__init__()
+        self.embed_dim = embed_dim
+        self.year_embed_dim = embed_dim // 2
+        self.julian_day_embed_dim = embed_dim - self.year_embed_dim
+
+        # If trainable, initialize scale with small number
+        if trainable_scale:
+            self.scale = nn.Parameter(torch.full((1,), 0.1))
+        else:
+            self.register_buffer('scale', torch.ones(1))
+
+    def forward(self, temporal_coords: torch.Tensor, tokens_per_frame: int | None = None):
+        """
+        temporal_coords: year and day-of-year info with shape (B, T, 2).
+        tokens_per_frame: number of tokens for each frame in the sample. If provided, embeddings will be
+            repeated over T dimension, and final shape is (B, T*tokens_per_frame, embed_dim).
+        """
+        shape = temporal_coords.shape[:2] + (-1,)  # B, T, -1
+
+        year = _get_1d_sincos_embed_from_grid_torch(
+            self.year_embed_dim, temporal_coords[:, :, 0].flatten()).reshape(shape)
+        julian_day = _get_1d_sincos_embed_from_grid_torch(
+            self.julian_day_embed_dim, temporal_coords[:, :, 1].flatten()).reshape(shape)
+
+        embedding = self.scale * torch.cat([year, julian_day], dim=-1)
+
+        if tokens_per_frame is not None:
+            embedding = torch.repeat_interleave(embedding, tokens_per_frame, dim=1)
+
+        return embedding  # B, T*tokens_per_frame, embed_dim
+
+
+class LocationEncoder(nn.Module):
+    def __init__(self, embed_dim: int, trainable_scale: bool = False):
+        super().__init__()
+        self.embed_dim = embed_dim
+        self.lat_embed_dim = embed_dim // 2
+        self.lon_embed_dim = embed_dim - self.lat_embed_dim
+
+        # If trainable, initialize scale with small number
+        if trainable_scale:
+            self.scale = nn.Parameter(torch.full((1,), 0.1))
+        else:
+            self.register_buffer('scale', torch.ones(1))
+
+    def forward(self, location_coords: torch.Tensor):
+        """
+        location_coords: lat and lon info with shape (B, 2).
+        """
+        shape = location_coords.shape[:1] + (1, -1)  # B, 1, -1
+
+        lat = _get_1d_sincos_embed_from_grid_torch(
+                self.lat_embed_dim, location_coords[:, 0].flatten()).reshape(shape)
+        lon = _get_1d_sincos_embed_from_grid_torch(
+                self.lon_embed_dim, location_coords[:, 1].flatten()).reshape(shape)
+
+        embedding = self.scale * torch.cat([lat, lon], dim=-1)
+
+        return embedding  # B, 1, embed_dim
+
+
+class PrithviViT(nn.Module):
+    """ Prithvi ViT Encoder"""
+    def __init__(self,
+                 img_size: int | tuple[int, int] = 224,
+                 patch_size: int | tuple[int, int, int] = (1, 16, 16),
+                 num_frames: int = 1,
+                 in_chans: int = 3,
+                 embed_dim: int = 1024,
+                 depth: int = 24,
+                 num_heads: int = 16,
+                 mlp_ratio: float = 4.,
+                 norm_layer: nn.Module = nn.LayerNorm,
+                 coords_encoding: list[str] | None = None,
+                 coords_scale_learn: bool = False,
+                 drop_path: float = 0.,
+                 ** kwargs,
+                ):
+        super().__init__()
+
+        self.in_chans = in_chans
+        self.num_frames = num_frames
+        self.embed_dim = embed_dim
+        self.img_size = to_2tuple(img_size)
+        if isinstance(patch_size, int):
+            patch_size = (1, patch_size, patch_size)
+
+        # 3D patch embedding
+        self.patch_embed = PatchEmbed(
+            input_size=(num_frames,) + self.img_size,
+            patch_size=patch_size,
+            in_chans=in_chans,
+            embed_dim=embed_dim,
+        )
+        self.out_channels = [embed_dim * self.patch_embed.grid_size[0]] * depth
+
+        # Optional temporal and location embedding
+        coords_encoding = coords_encoding or []
+        self.temporal_encoding = 'time' in coords_encoding
+        self.location_encoding = 'location' in coords_encoding
+        if self.temporal_encoding:
+            assert patch_size[0] == 1, f"With temporal encoding, patch_size[0] must be 1, received {patch_size[0]}"
+            self.temporal_embed_enc = TemporalEncoder(embed_dim, coords_scale_learn)
+        if self.location_encoding:
+            self.location_embed_enc = LocationEncoder(embed_dim, coords_scale_learn)
+
+        self.cls_token = nn.Parameter(torch.zeros(1, 1, embed_dim))
+        self.register_buffer("pos_embed", torch.zeros(1, self.patch_embed.num_patches + 1, embed_dim))
+
+        # Transformer layers
+        self.blocks = []
+        for i in range(depth):
+            self.blocks.append(Block(embed_dim, num_heads, mlp_ratio, qkv_bias=True, norm_layer=norm_layer,
+                                     drop_path=drop_path,))
+        self.blocks = nn.ModuleList(self.blocks)
+
+        self.norm = norm_layer(embed_dim)
+
+        self.initialize_weights()
+
+    def initialize_weights(self):
+        # initialize (and freeze) position embeddings by sin-cos embedding
+        pos_embed = get_3d_sincos_pos_embed(
+            self.pos_embed.shape[-1], self.patch_embed.grid_size, add_cls_token=True
+        )
+        self.pos_embed.data.copy_(torch.from_numpy(pos_embed).float().unsqueeze(0))
+
+        # initialize patch_embeddings like nn.Linear (instead of nn.Conv2d)
+        w = self.patch_embed.proj.weight.data
+        torch.nn.init.xavier_uniform_(w.view([w.shape[0], -1]))
+
+        # timm's trunc_normal_(std=.02) is effectively normal_(std=0.02) as cutoff is too big (2.)
+        torch.nn.init.normal_(self.cls_token, std=0.02)
+        self.apply(_init_weights)
+
+    def random_masking(self, sequence, mask_ratio, noise=None):
+        """
+        Perform per-sample random masking by per-sample shuffling. Per-sample shuffling is done by argsort random
+        noise.
+
+        Args:
+            sequence (`torch.FloatTensor` of shape `(batch_size, sequence_length, dim)`)
+            mask_ratio (float): mask ratio to use.
+            noise (`torch.FloatTensor` of shape `(batch_size, sequence_length)`, *optional*) which is
+                mainly used for testing purposes to control randomness and maintain the reproducibility
+        """
+        batch_size, seq_length, dim = sequence.shape
+        len_keep = int(seq_length * (1 - mask_ratio))
+
+        if noise is None:
+            noise = torch.rand(batch_size, seq_length, device=sequence.device)  # noise in [0, 1]
+
+        # sort noise for each sample
+        ids_shuffle = torch.argsort(noise, dim=1).to(sequence.device)  # ascend: small is keep, large is remove
+        ids_restore = torch.argsort(ids_shuffle, dim=1).to(sequence.device)
+
+        # keep the first subset
+        ids_keep = ids_shuffle[:, :len_keep]
+        sequence_unmasked = torch.gather(sequence, dim=1, index=ids_keep.unsqueeze(-1).repeat(1, 1, dim))
+
+        # generate the binary mask: 0 is keep, 1 is remove
+        mask = torch.ones([batch_size, seq_length], device=sequence.device)
+        mask[:, :len_keep] = 0
+        # unshuffle to get the binary mask
+        mask = torch.gather(mask, dim=1, index=ids_restore)
+
+        return sequence_unmasked, mask, ids_restore
+
+    def interpolate_pos_encoding(self, sample_shape: tuple[int, int, int]):
+
+        pos_embed = _interpolate_pos_encoding(
+            pos_embed=self.pos_embed,
+            grid_size=self.patch_embed.grid_size,
+            patch_size=self.patch_embed.patch_size,
+            shape=sample_shape,
+            embed_dim=self.embed_dim,
+        )
+        return pos_embed
+
+    def forward(
+        self, x: torch.Tensor,
+        temporal_coords: None | torch.Tensor = None,
+        location_coords: None | torch.Tensor = None,
+        mask_ratio=0.75
+    ):
+        if len(x.shape) == 4 and self.patch_embed.input_size[0] == 1:
+            # add time dim
+            x = x.unsqueeze(2)
+        sample_shape = x.shape[-3:]
+
+        # embed patches
+        x = self.patch_embed(x)
+
+        pos_embed = self.interpolate_pos_encoding(sample_shape)
+        # add pos embed w/o cls token
+        x = x + pos_embed[:, 1:, :]
+
+        if self.temporal_encoding and temporal_coords is not None:
+            num_tokens_per_frame = x.shape[1] // self.num_frames
+            temporal_encoding = self.temporal_embed_enc(temporal_coords, num_tokens_per_frame)
+            x = x + temporal_encoding
+        if self.location_encoding and location_coords is not None:
+            location_encoding = self.location_embed_enc(location_coords)
+            x = x + location_encoding
+
+        # masking: length -> length * mask_ratio
+        x, mask, ids_restore = self.random_masking(x, mask_ratio)
+
+        # append cls token
+        cls_token = self.cls_token + pos_embed[:, :1, :]
+        cls_tokens = cls_token.expand(x.shape[0], -1, -1)
+        x = torch.cat((cls_tokens, x), dim=1)
+
+        # apply Transformer blocks
+        for block in self.blocks:
+            x = block(x)
+        x = self.norm(x)
+
+        return x, mask, ids_restore
+
+    def forward_features(
+        self,
+        x: torch.Tensor,
+        temporal_coords: None | torch.Tensor = None,
+        location_coords: None | torch.Tensor = None,
+    ) -> list[torch.Tensor]:
+        if len(x.shape) == 4 and self.patch_embed.input_size[0] == 1:
+            # add time dim
+            x = x.unsqueeze(2)
+        sample_shape = x.shape[-3:]
+
+        # embed patches
+        x = self.patch_embed(x)
+
+        pos_embed = self.interpolate_pos_encoding(sample_shape)
+        # add pos embed w/o cls token
+        x = x + pos_embed[:, 1:, :]
+
+        if self.temporal_encoding and temporal_coords is not None:
+            num_tokens_per_frame = x.shape[1] // self.num_frames
+            temporal_encoding = self.temporal_embed_enc(temporal_coords, num_tokens_per_frame)
+            x = x + temporal_encoding
+        if self.location_encoding and location_coords is not None:
+            location_encoding = self.location_embed_enc(location_coords)
+            x = x + location_encoding
+
+        # append cls token
+        cls_token = self.cls_token + pos_embed[:, :1, :]
+        cls_tokens = cls_token.expand(x.shape[0], -1, -1)
+        x = torch.cat((cls_tokens, x), dim=1)
+
+        # apply Transformer blocks
+        out = []
+        for block in self.blocks:
+            x = block(x)
+            out.append(x.clone())
+
+        x = self.norm(x)
+        out[-1] = x
+        return out
+
+    def prepare_features_for_image_model(self, features: list[torch.Tensor]) -> list[torch.Tensor]:
+        out = []
+        effective_time_dim = self.patch_embed.input_size[0] // self.patch_embed.patch_size[0]
+        for x in features:
+            x_no_token = x[:, 1:, :]
+            number_of_tokens = x_no_token.shape[1]
+            tokens_per_timestep = number_of_tokens // effective_time_dim
+            h = int(np.sqrt(tokens_per_timestep))
+            encoded = rearrange(
+                x_no_token,
+                "batch (t h w) e -> batch (t e) h w",
+                e=self.embed_dim,
+                t=effective_time_dim,
+                h=h,
+            )
+            out.append(encoded)
+        return out
+
+
+class MAEDecoder(nn.Module):
+    """ Transformer Decoder used in the Prithvi MAE"""
+    def __init__(self,
+                 patch_size: int | tuple[int, int, int] = (1, 16, 16),
+                 grid_size: list[int] | tuple[int, int, int] = (3, 14, 14),
+                 in_chans: int = 3,
+                 encoder_embed_dim: int = 1024,
+                 decoder_embed_dim: int = 512,
+                 depth: int = 8,
+                 num_heads: int = 16,
+                 mlp_ratio: float = 4.,
+                 norm_layer: nn.Module = nn.LayerNorm,
+                 coords_encoding: list[str] | None = None,
+                 coords_scale_learn: bool = False,
+                 ):
+        super().__init__()
+
+        self.decoder_embed = nn.Linear(encoder_embed_dim, decoder_embed_dim, bias=True)
+        self.decoder_embed_dim = decoder_embed_dim
+        self.grid_size = grid_size
+        if isinstance(patch_size, int):
+            patch_size = (1, patch_size, patch_size)
+        self.patch_size = patch_size
+        self.num_frames = self.grid_size[0] * patch_size[0]
+        num_patches = self.grid_size[0] * self.grid_size[1] * self.grid_size[2]
+
+        # Optional temporal and location embedding
+        coords_encoding = coords_encoding or []
+        self.temporal_encoding = 'time' in coords_encoding
+        self.location_encoding = 'location' in coords_encoding
+        if self.temporal_encoding:
+            self.temporal_embed_dec = TemporalEncoder(decoder_embed_dim, coords_scale_learn)
+        if self.location_encoding:
+            self.location_embed_dec = LocationEncoder(decoder_embed_dim, coords_scale_learn)
+
+        self.mask_token = nn.Parameter(torch.zeros(1, 1, decoder_embed_dim))
+
+        self.register_buffer("decoder_pos_embed", torch.zeros(1, num_patches + 1, decoder_embed_dim))
+
+        self.decoder_blocks = nn.ModuleList(
+            [Block(decoder_embed_dim, num_heads, mlp_ratio, qkv_bias=True, norm_layer=norm_layer) for _ in range(depth)]
+        )
+
+        self.decoder_norm = norm_layer(decoder_embed_dim)
+        self.decoder_pred = nn.Linear(decoder_embed_dim,
+                                      patch_size[0] * patch_size[1] * patch_size[2] * in_chans,
+                                      bias=True)
+
+        self.initialize_weights()
+
+    def initialize_weights(self):
+        # initialize (and freeze) position embeddings by sin-cos embedding
+        decoder_pos_embed = get_3d_sincos_pos_embed(
+            self.decoder_pos_embed.shape[-1], self.grid_size, add_cls_token=True
+        )
+        self.decoder_pos_embed.data.copy_(torch.from_numpy(decoder_pos_embed).float().unsqueeze(0))
+
+        # timm's trunc_normal_(std=.02) is effectively normal_(std=0.02) as cutoff is too big (2.)
+        torch.nn.init.normal_(self.mask_token, std=0.02)
+        self.apply(_init_weights)
+
+    def interpolate_pos_encoding(self, sample_shape: tuple[int, int, int]):
+
+        pos_embed = _interpolate_pos_encoding(
+            pos_embed=self.decoder_pos_embed,
+            grid_size=self.grid_size,
+            patch_size=self.patch_size,
+            shape=sample_shape,
+            embed_dim=self.decoder_embed_dim,
+        )
+
+        return pos_embed
+
+    def forward(
+        self,
+        hidden_states: torch.Tensor,
+        ids_restore: torch.Tensor,
+        temporal_coords: None | torch.Tensor = None,
+        location_coords: None | torch.Tensor = None,
+        input_size: list[int] = None,
+    ):
+        # embed tokens
+        x = self.decoder_embed(hidden_states)
+        cls_token = x[:, :1, :]
+
+        # append mask tokens to sequence
+        mask_tokens = self.mask_token.repeat(x.shape[0], ids_restore.shape[1] + 1 - x.shape[1], 1)
+        x = torch.cat([x[:, 1:, :], mask_tokens], dim=1)  # no cls token
+        # unshuffle
+        x = torch.gather(x, dim=1, index=ids_restore.unsqueeze(-1).repeat(1, 1, x.shape[2]).to(x.device))
+
+        # add pos embed
+        decoder_pos_embed = self.interpolate_pos_encoding(input_size[-3:])
+        cls_token = cls_token + decoder_pos_embed[:, :1, :]
+        x = x + decoder_pos_embed[:, 1:, :]
+
+        if self.temporal_encoding and temporal_coords is not None:
+            num_tokens_per_frame = x.shape[1] // self.num_frames
+            temporal_encoding = self.temporal_embed_dec(temporal_coords, num_tokens_per_frame)
+            # Add temporal encoding w/o cls token
+            x = x + temporal_encoding
+        if self.location_encoding and location_coords is not None:
+            location_encoding = self.location_embed_dec(location_coords)
+            # Add location encoding w/o cls token
+            x = x + location_encoding
+
+        # append cls token
+        x = torch.cat([cls_token, x], dim=1)
+
+        # apply Transformer layers (blocks)
+        for block in self.decoder_blocks:
+            x = block(x)
+        x = self.decoder_norm(x)
+
+        # predictor projection
+        pred = self.decoder_pred(x)
+
+        # remove cls token
+        pred = pred[:, 1:, :]
+
+        return pred
+
+
+class PrithviMAE(nn.Module):
+    """ Prithvi Masked Autoencoder"""
+
+    def __init__(self,
+                 img_size: int | tuple[int, int] = 224,
+                 patch_size: int | tuple[int, int, int] = (1, 16, 16),
+                 num_frames: int = 4,
+                 in_chans: int = 6,
+                 embed_dim: int = 768,
+                 depth: int = 12,
+                 num_heads: int = 12,
+                 decoder_embed_dim: int = 512,
+                 decoder_depth: int = 8,
+                 decoder_num_heads: int = 16,
+                 mlp_ratio: float = 4.,
+                 norm_layer: nn.Module = nn.LayerNorm,
+                 norm_pix_loss: bool = False,
+                 coords_encoding: list[str] | None = None,
+                 coords_scale_learn: bool = False,
+                 drop_path: float = 0.,
+                 mask_ratio: float = 0.75,
+                 **kwargs,
+                 ):
+        super().__init__()
+
+        self.encoder = PrithviViT(
+            img_size=img_size,
+            num_frames=num_frames,
+            patch_size=patch_size,
+            in_chans=in_chans,
+            embed_dim=embed_dim,
+            depth=depth,
+            num_heads=num_heads,
+            mlp_ratio=mlp_ratio,
+            norm_layer=norm_layer,
+            coords_encoding=coords_encoding,
+            coords_scale_learn=coords_scale_learn,
+            drop_path=drop_path,
+        )
+
+        self.decoder = MAEDecoder(
+            patch_size=patch_size,
+            grid_size=self.encoder.patch_embed.grid_size,
+            in_chans=in_chans,
+            encoder_embed_dim=embed_dim,
+            decoder_embed_dim=decoder_embed_dim,
+            depth=decoder_depth,
+            num_heads=decoder_num_heads,
+            mlp_ratio=mlp_ratio,
+            norm_layer=norm_layer,
+            coords_encoding=coords_encoding,
+            coords_scale_learn=coords_scale_learn,
+        )
+
+        self.mask_ratio = mask_ratio
+        self.norm_pix_loss = norm_pix_loss
+        self.out_channels = self.encoder.out_channels
+
+    def patchify(self, pixel_values):
+        """
+        Args:
+            pixel_values (torch.FloatTensor of shape `(batch_size, num_channels, time, height, width)`):
+                Pixel values.
+
+        Returns:
+            torch.FloatTensor of shape
+                `(batch_size, num_patches, patch_size[0]*patch_size[1]*patch_size[2] * num_channels)`:
+                Patchified pixel values.
+        """
+        patch_size_t, patch_size_h, patch_size_w = self.encoder.patch_embed.patch_size
+        num_channels = self.encoder.in_chans
+
+        # patchify
+        patchified_pixel_values = rearrange(pixel_values, 'b c (t s) (h p) (w q) -> b (t h w) (s p q c)',
+                                            c=num_channels, s=patch_size_t, p=patch_size_h, q=patch_size_w)
+
+        return patchified_pixel_values
+
+    def unpatchify(self, patchified_pixel_values, image_size: tuple[int, int] | None = None):
+        """
+        Args:
+            patchified_pixel_values (`torch.FloatTensor` of shape
+                `(batch_size, num_patches, patch_size[0]*patch_size[1]*patch_size[2] * num_channels))`:
+                Patchified pixel values.
+            image_size (`tuple[int, int]`, *optional*):
+                Original image size.
+
+        Returns:
+            `torch.FloatTensor` of shape `(batch_size, num_channels, height, width)`:
+                Pixel values.
+        """
+        patch_size_t, patch_size_h, patch_size_w = self.encoder.patch_embed.patch_size
+        image_size = to_2tuple(image_size) if image_size is not None else self.encoder.img_size
+        original_height, original_width = image_size
+        num_patches_h = original_height // patch_size_h
+        num_patches_w = original_width // patch_size_w
+        num_channels = self.encoder.in_chans
+
+        pixel_values = rearrange(patchified_pixel_values, 'b (t h w) (s p q c) -> b c (t s) (h p) (w q)',
+                                 c=num_channels, h=num_patches_h, w=num_patches_w,
+                                 s=patch_size_t, p=patch_size_h, q=patch_size_w)
+        return pixel_values
+
+    def forward_loss(self, pixel_values, pred, mask):
+        """
+        Args:
+            pixel_values (`torch.FloatTensor` of shape `(batch_size, num_channels, time, height, width)`):
+                Pixel values.
+            pred (`torch.FloatTensor` of shape
+                `(batch_size, num_patches, patch_size[0]*patch_size[1]*patch_size[2] * num_channels)`:
+                Predicted pixel values.
+            mask (`torch.FloatTensor` of shape `(batch_size, sequence_length)`):
+                Tensor indicating which patches are masked (1) and which are not (0).
+
+        Returns:
+            `torch.FloatTensor`: Pixel reconstruction loss.
+        """
+        target = self.patchify(pixel_values)
+        if self.norm_pix_loss:
+            mean = target.mean(dim=-1, keepdim=True)
+            var = target.var(dim=-1, keepdim=True)
+            target = (target - mean) / (var + 1.0e-6) ** 0.5
+
+        loss = (pred - target) ** 2
+        loss = loss.mean(dim=-1)  # [N, L], mean loss per patch
+        loss = (loss * mask).sum() / mask.sum()  # mean loss on removed patches
+        return loss
+
+    def forward(
+        self,
+        pixel_values: torch.Tensor,
+        temporal_coords: None | torch.Tensor = None,
+        location_coords: None | torch.Tensor = None,
+        mask_ratio: float = None,
+    ):
+        if len(pixel_values.shape) == 4 and self.encoder.patch_embed.input_size[0] == 1:
+            # add time dim
+            pixel_values = pixel_values.unsqueeze(2)
+
+        mask_ratio = mask_ratio or self.mask_ratio
+        latent, mask, ids_restore = self.encoder(pixel_values, temporal_coords, location_coords, mask_ratio)
+        pred = self.decoder(latent, ids_restore, temporal_coords, location_coords, input_size=pixel_values.shape)
+        loss = self.forward_loss(pixel_values, pred, mask)
+        return loss, pred, mask
+
+    def forward_features(
+        self,
+        x: torch.Tensor,
+        temporal_coords: None | torch.Tensor = None,
+        location_coords: None | torch.Tensor = None,
+    ) -> list[torch.Tensor]:
+        return self.encoder.forward_features(x, temporal_coords, location_coords)

requirements.txt

@@ -0,0 +1,5 @@
+torch
+torchvision
+timm
+einops
+rasterio
