+# HearthNet — Local node ↔ live HF Space (connection proof)
+
+These artifacts demonstrate a **local Python HearthNet node peering with the live
+Hugging Face Space** and routing real capability calls over HTTPS through the
+capability bus.
+
+Space: https://build-small-hackathon-hearthnet.hf.space
+
+## Screenshots
+
+| File | What it shows |
+| --- | --- |

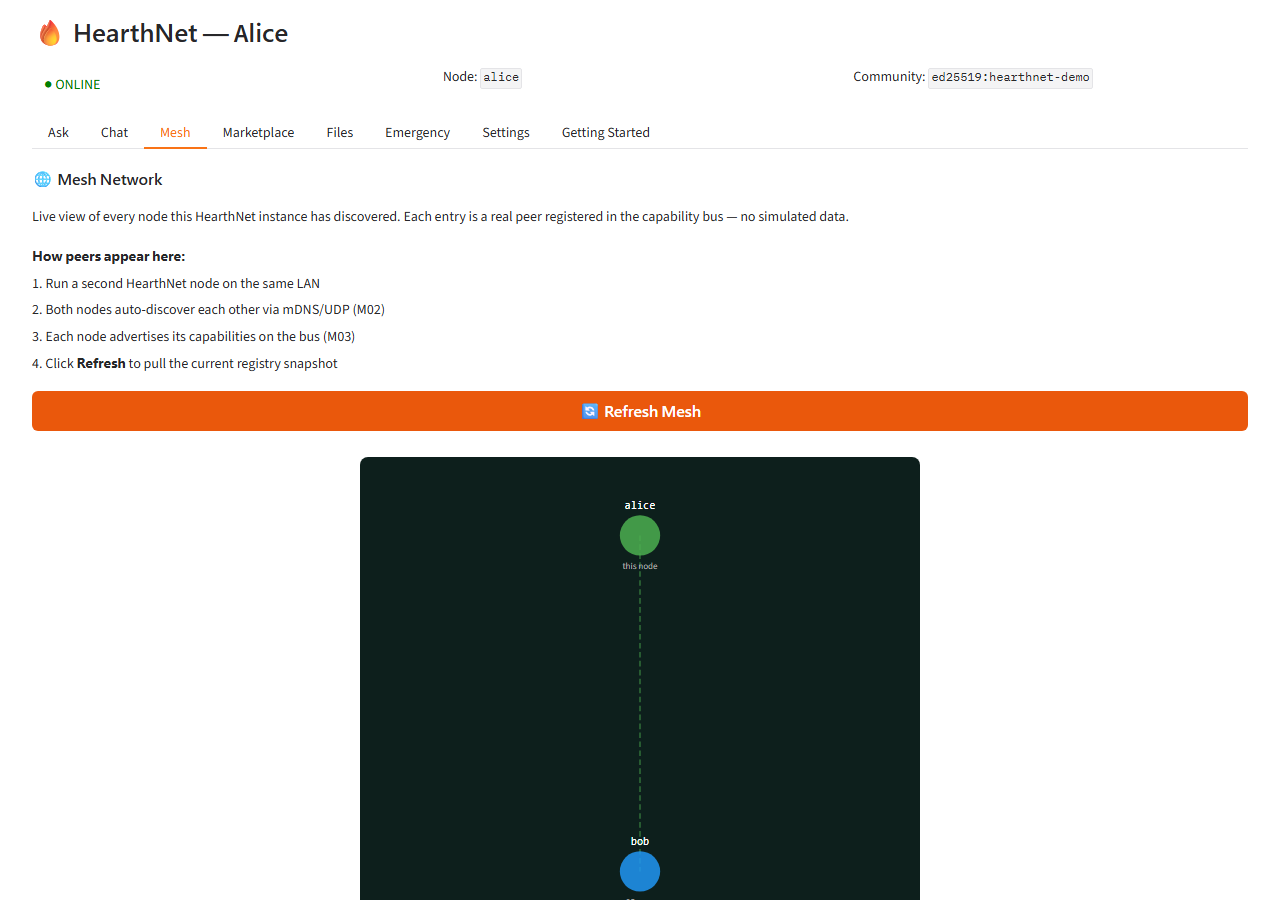

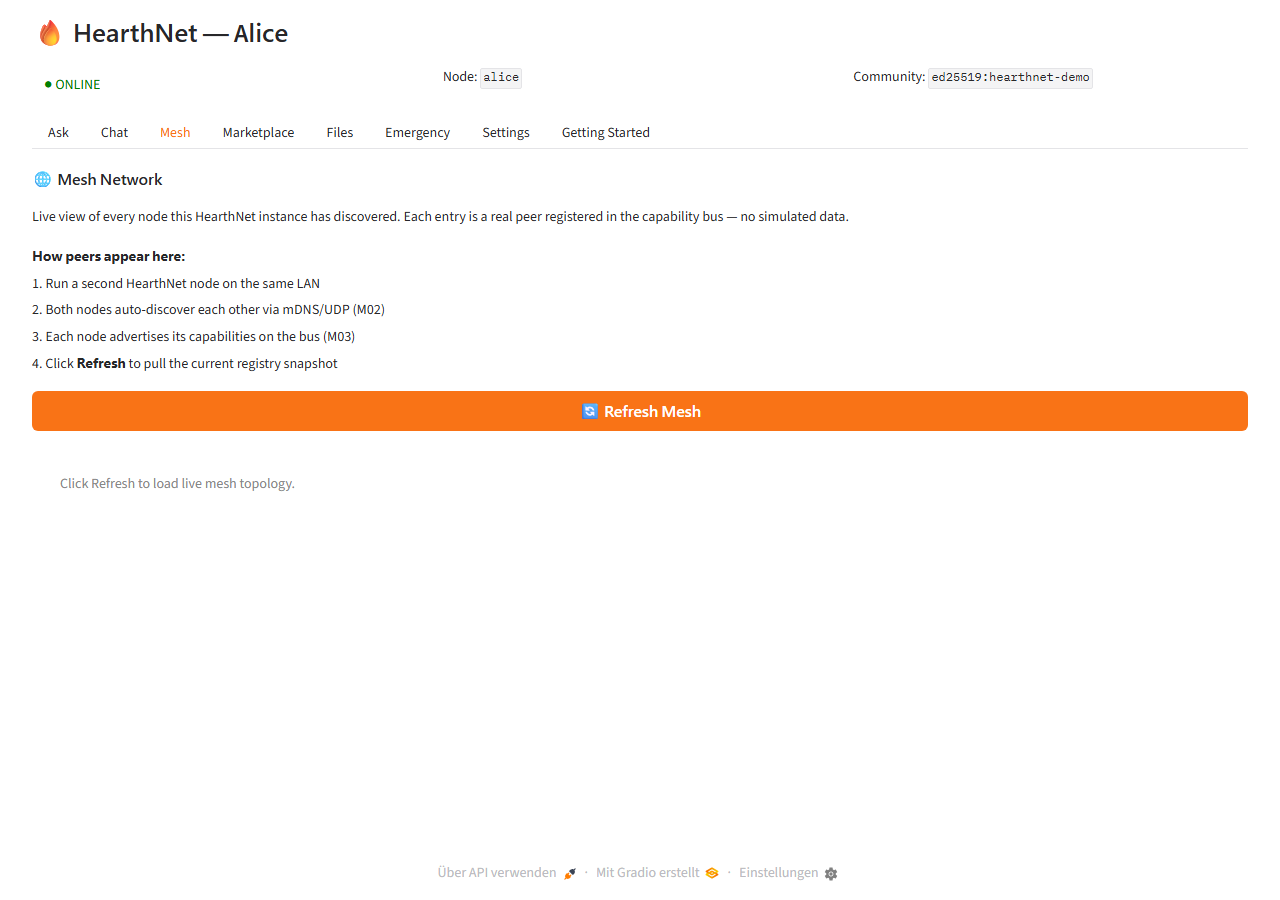

+| `01-hf-space-live.png` | The live HF Space UI (HearthNet mesh view). |
+| `02-connection-proof.png` | A local node peered with the Space (38 remote capabilities routable) and a real `llm.chat` + `rag.list_corpora` routed to the Space. |
+
+## Reproduce
+
+```powershell
+# Peer a local node with the live Space and route a real llm.chat call
+python scripts/connect_to_hf.py --ask "In one sentence, how do I store water safely?"
+
+# Regenerate the proof image from live calls
+python scripts/make_proof.py
+```
+
+## How the connection works
+
+1. The local node exposes `discovery.peer.add@1.0` (added in `hearthnet/discovery/service.py`).
+2. `discovery.peer.add` fetches the Space's `/manifest`, registers all remote
+   capabilities into the local bus registry, and records the HTTPS endpoint.
+3. When a capability (e.g. `llm.chat`) is only available remotely, the bus router
+   picks the remote peer and `HttpBusTransport` (`hearthnet/bus/http_transport.py`)
+   POSTs to the Space's `/bus/v1/call`.
+4. The Space serves `/bus/v1/call`, `/manifest`, `/health`, and
+   `/bus/v1/capabilities` via FastAPI routes mounted into the Gradio app
+   (`_mount_bus_endpoints` in `app.py`).
+
+## Notes / limitations
+
+- **Sharing works:** `llm.chat`, `llm.complete`, `rag.query`, `rag.list_corpora`,
+  `rag.federated_query`, chat, market, file, evidence, civdef, OCR, translation,
+  STT/TTS, and image capabilities are all routable cross-network.
+- **`embed.text` on the Space:** fails over the raw bus route with a ZeroGPU CUDA
+  error. GPU ops on HF ZeroGPU only run inside Gradio's `@spaces.GPU` event path,
+  not from a plain FastAPI route. This is an HF runtime constraint, not a bus bug;
+  embeddings work locally and on dedicated/CPU Spaces.
+- **`invite redeem` / QR codes** are a separate *community-membership* flow
+  (`community.redeem`), not transport peering. Transport peering between nodes is
+  done via `discovery.peer.add` as shown here.
