diffusion-planner-p150

Diffusion Planner v5.0 (Autoware diffusion_planner): the network Autoware deploys in autoware_diffusion_planner, ported to one Tenstorrent Blackhole p150 with tt-nn. The whole plan runs on the chip as one metal trace (one per agent bucket, picked per request): the scene encoder, the 11 DiT decoder evaluations of the DPM-Solver++(2M) loop with their solver updates, and the turn-indicator head. The Autoware planner tensors in (ego and neighbour histories, lanes, route, polygons, line strings, goal, ego shape, turn-indicator history); an 8 s ego trajectory, the predicted 8 s paths of the neighbours and a turn-indicator command out, with the node's exact pre- and post-processing. Weights: AutowareFoundation/diffusion_planner v5.0 · Paper: arXiv:2501.15564 · Autoware package: autoware_diffusion_planner · Training code: tier4/Diffusion-Planner (TIER IV training fork) · Port: code/

Runs on p150 (mesh P150). Configuration: dispatch on the ETH cores, 1 command queue, 12×10 compute grid. Numerics (the default and the serve.env pins): fp32 residual streams and solver state, HiFi4 with fp32 accumulation, split hi / lo matmuls for the mixer inputs and every decoder linear (each as one K-concatenated fp32 matmul), fp32 LayerNorm in the mixers and the decoder and fp32 matmul attention in the fusion encoder and the decoder (each as one fused custom kernel): the configuration the end-to-end accuracy gates need (Caveats). Optimized release: 5.1x faster on the device than the first release (102.0 -> 20.0 ms per plan on the shipped sample), same gates. All numbers on this card were measured in this configuration.

Packaged and published with tt-model-manager 0.1.0 (manifest schema 5.1).

Quickstart (Python)

Prerequisite: a tt-metal / ttnn environment at tt-metal 44d66500520 with patches/tt-metal-eth-dispatch.patch applied. The image also carries patches/tt-metal-reshape-rm-sys1419.patch, a guard against an intermittent hang of row-major reshapes under ETH dispatch on Blackhole; the numbers on this card were measured with both. ttnn is not on PyPI.

hf download changh95/diffusion-planner-p150 --exclude "image/*" --local-dir diffusion-planner-p150 && cd diffusion-planner-p150
pip install -e .                        # adds numpy<2, pillow, pyyaml, onnx, huggingface_hub; ttnn and torch come from tt-metal
pip install -e ".[server,test]"         # optional: the HTTP server and the tests

Run the snippet from the model repo root: code/tt_diffusion_planner/samples/kashiwanoha_dense.npz is a path relative to it.

from tt_diffusion_planner import DiffusionPlanner

with DiffusionPlanner.from_pretrained(device_id=0) as model:      # weights -> your HF cache, trace captured
    out = model(inputs="code/tt_diffusion_planner/samples/kashiwanoha_dense.npz")   # the 15 raw planner tensors: .npz path, its bytes, or {name: array}

print(out.columns)            # x, y, yaw, cos, sin, velocity, acceleration (base_link, 0.1-8.0 s)
print(out.poses[:5])
print(out.turn_indicator["command_name"], out.predicted_agents.shape)

• from_pretrained downloads the three v5.0 ONNX files and diffusion_planner.param.json (58.9 MB) of AutowareFoundation/diffusion_planner at the pinned commit 423efde67f5 (tag v5.0) to your HF cache (no token needed), checks their sha256, opens the chip, builds the graph and captures the metal traces (6: the full capacity and 5 agent buckets). The first load compiles the kernels (352 s with an empty JIT cache, firmware and every kernel compiled); later loads take about 13 s (device open, reading and uploading the weights, warm-up and the capture of the 6 traces).
• The traces are captured during the load, so no call compiles anything (first call 37 ms, later calls 32 ms with an .npz path).
• The with block releases the trace and closes the chip. Without with, call model.close().

Input	inputs=: the 15 raw tensors of the node's create_input_data() (ego frame, before normalization; batch 1): an .npz path or its bytes, a {name: array} mapping, or the /predict JSON envelope. Checked against DiffusionPlanner.INPUT_SCHEMA (names, shapes, finite values). Converting ROS messages and the Lanelet2 map into these tensors stays with the client.
Options	velocity_smoothing_window=8, stopping_threshold=0.3, turn_indicator_keep_offset=-1.25, return_denoising_steps=False. from_pretrained(device_id=0, dispatch="eth", weights_dir=None, device=None).
Output	Trajectory: poses float32 [80, 7] (x, y, yaw, cos, sin, velocity, acceleration; base_link), turn_indicator (command, logits, probabilities), predicted_agents float32 [N, 80, 5], timing_ms, meta (the neighbour rows, force stop, the solver iterates on request).
Methods	out.to_dict() gives the /predict JSON. out.to_dicts() gives one dict per trajectory point.

• The API gives the same output as the HTTP server /predict: both share the decoders, the device trace and the host post-processing (checked on the device by test_api_equals_server).
• The API is stateless: one call is one plan. What the Autoware node keeps between plans stays with the caller: the turn-indicator hold window (1.0 s; the node's manager ships as tt_diffusion_planner.host.postprocess.TurnIndicatorManager), the initial solver state sampled_trajectories (zeros = the node's default temperature 0; noise for a temperature > 0; the previous plan for the RTC prefix) and the agent and ego histories. Details: code/PYTHON.md "What the caller keeps".
• One model uses one chip; calls from several threads are serialised.
• Each call replays the trace of the smallest agent bucket (32 / 64 / 96 / 128 / 192 rows, else the full 321) that holds the ego and every valid neighbour row (the node fills the rows from the front); the result is exact (bit-identical to the full-capacity trace), only the device time depends on the scene.
• Full reference: code/PYTHON.md. Runnable example: examples/quickstart.py (also writes quickstart_bev.png, the input tensors and the plan from above).

Serving (HTTP)

tt-model pull  changh95/diffusion-planner-p150 --with-weights
tt-model serve changh95/diffusion-planner-p150       # or with tt-cli: tt serve changh95/diffusion-planner-p150
python3 code/tt_diffusion_planner/server/client.py --inputs code/tt_diffusion_planner/samples/kashiwanoha_dense.npz --out req.json
curl -s localhost:20000/predict -H 'Content-Type: application/json' -d @req.json
tt model stop changh95/diffusion-planner-p150

• The image does not contain the weights. --with-weights puts them in your HF cache.
• The server uses port 20000 (or the next free port). It is ready when the log shows Application startup complete.
• One serve profile, the default (tt-model profiles changh95/diffusion-planner-p150). serve.env pins ETH dispatch, 1 CQ and the numerics knobs.
• Run the request lines from the model repo root (the hf download of the Quickstart): the client and the sample are files of this repo. code/tt_diffusion_planner/server/client.py needs only the Python standard library (no numpy); add --url http://127.0.0.1:20000 to send the request.
• POST /predict: inputs (the 15 raw tensors of the Autoware node's create_input_data() in the ego frame, before normalization: a base64 .npz or {"format": "json", "arrays": {...}}); optional params (velocity_smoothing_window 8, stopping_threshold 0.3, turn_indicator_keep_offset -1.25, return_denoising_steps false), output_format. Also GET /health, GET /info, GET /v1/models (stub). Contract: SERVING.md section 3.

The response for the shipped sample (served on the p150; trajectory cut to 3 of 80 rows):

{
 "model": "diffusion-planner-p150",
 "frame_id": "base_link",
 "meta": {"predicted_agent_columns": ["x", "y", "yaw", "cos", "sin"], "predicted_agent_rows": [0, 1, 2, "... 85 more"], "force_stop": false, "time_from_start_s": [0.1, 0.2, 0.3, "... 77 more"], "valid_counts": {"ego": 1, "neighbor": 88, "static": 0, "lane": 123, "route": 17, "polygon": 0, "line_string": 60, "goal": 1, "ego_shape": 1, "turn": 1}},
 "timing_ms": {"preprocess": 2.4, "device": 22.8, "postprocess": 1.2, "total": 36.9, "decode": 8.4, "model_call": 26.7},
 "num_poses": 80,
 "columns": ["x", "y", "yaw", "cos", "sin", "velocity", "acceleration"],
 "trajectory": [[0.3644, 0.01, -0.0169, 0.9964, -0.0169, 3.8033, -0.0392], [0.7626, -0.0021, -0.0412, 0.9968, -0.0412, 3.7994, -0.5496], [1.1517, -0.0281, -0.0674, 0.9942, -0.0672, 3.7444, -0.4683], "... 77 more rows"],
 "turn_indicator": {"command": 1, "command_name": "DISABLE", "keep_selected": true, "held": false, "logits": [-15.960197448730469, -5.119836807250977, -5.23490047454834, -0.7636525630950928, 5.502235412597656], "probabilities": [1.655269699085693e-09, 8.448460721410811e-05, 7.530191942350939e-05, 0.00658634165301919, 0.9931545257568359]},
 "predicted_agents": {"format": "npz", "key": "predicted_agents", "dtype": "float32", "shape": [88, 80, 5], "data": "<base64 npz>"}
}

• trajectory: 80 points at 0.1-8.0 s in base_link (the ego frame of the input tensors), post-processed like the node's ~/output/trajectory: velocity from consecutive points, forward moving average over velocity_smoothing_window points, force stop (poses frozen once the smoothed speed falls below stopping_threshold while the ego moves), acceleration by finite difference. yaw is what tf2::getYaw reads from the node's (unnormalised) quaternion; cos / sin are the raw network outputs.
• turn_indicator.command: 0 NO_COMMAND, 1 DISABLE, 2 ENABLE_LEFT, 3 ENABLE_RIGHT (KEEP repeats the last input report); the node's 1 s hold window needs state across calls and is not applied (see above).
• predicted_agents: one 80-point path (x, y, yaw, cos, sin) per non-empty neighbour row, in input order (meta.predicted_agent_rows).

Demo

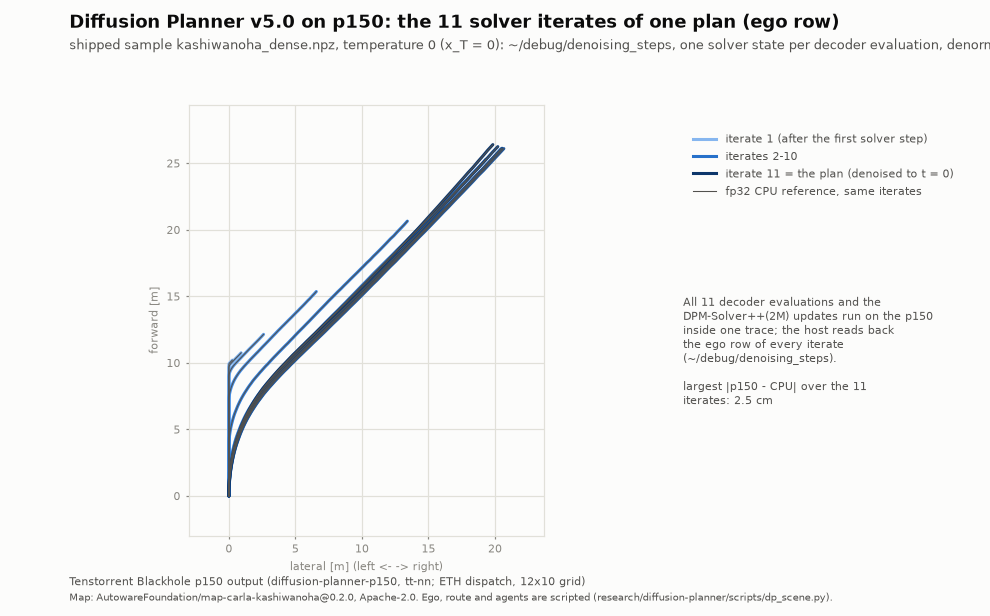

Shipped sample kashiwanoha_dense.npz: the p150 plan next to the fp32 CPU reference	The 11 solver iterates of the same plan (ego row), p150 and CPU

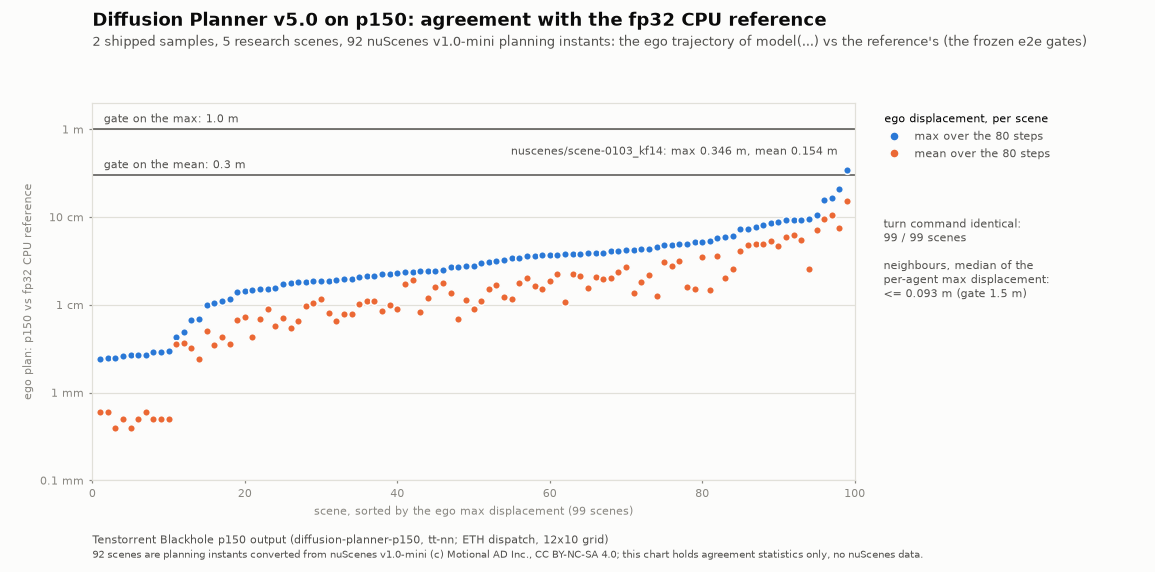

Shipped sample straight_road.npz	Agreement with the fp32 CPU reference on all 99 gated scenes

On nuScenes v1.0-mini planning instants (p150 outputs; the scenes are converted from the dataset into the planner tensors and are not in this repository). Non-commercial, CC BY-NC-SA 4.0. The grey path with hollow dots is the logged drive; the model never saw nuScenes (see Caveats).

scene-0061, 2 Hz sequence (33 plans): following a van, then a left turn	scene-0061 key-frame 18, in the turn: CAM_FRONT with the plan as a vehicle-width ribbon

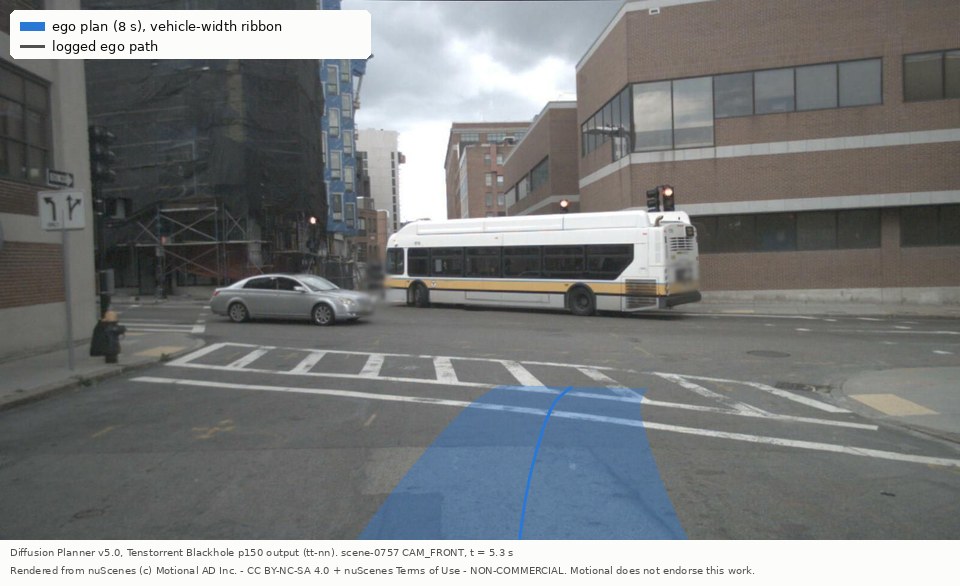

scene-0757 key-frame 11: the turn head commands RIGHT before the driver's blinker	scene-0757 key-frame 11, CAM_FRONT
scene-0103 key-frame 12 (mini_val, Boston)	scene-0103 key-frame 12, CAM_FRONT
scene-0061 key-frame 6: approach behind the van	scene-0916 key-frame 11 (mini_val): parking-lot right turn

nuScenes renders: rendered from the nuScenes dataset (v1.0-mini, CAN bus expansion and map expansion v1.3), © Motional AD Inc., CC BY-NC-SA 4.0 and the nuScenes Terms of Use; non-commercial use only; Motional does not endorse this work. The kashiwanoha sample is derived from the Apache-2.0 map AutowareFoundation/map-carla-kashiwanoha. Sources, changes and the full attributions: media/ATTRIBUTION.md.

Demo & Performances

Warm, batch 1, measured 2026-10-11 on the optimized release (bundle bc966b4; the packaged code adds only the WORKER-grid fallback 7e003c4, bit-identical on ETH, and the version string). Latency: the stage bench of OPT_REPORT.md (code/scripts/bench.py, 100 iterations per stage) on the shipped sample kashiwanoha_dense.npz (88 neighbours, 123 lanes, 17 route lanes, 60 line strings: agent bucket r96). The device time depends on the agent bucket the scene needs (exact compaction, see Caveats): 17.44 ms for ≤ 31 neighbours up to 26.65 ms at the full 320. The served rows come from uvicorn on the host (the app the container runs, with its serve pins) and a loopback client, 50 requests of the shipped sample. The host is shared with other jobs, so the host stages move with its load by a few ms; the device rows repeat to ±0.02 ms. Accuracy: the p150 output against the fp32 CPU reference of the same network on 99 scenes: the 2 shipped samples, 5 research scenes and 92 nuScenes v1.0-mini planning instants (the frozen end-to-end gates), and against the research pipeline's ONNX Runtime outputs as an independent oracle. The first release's numbers are in OPT_BASELINE.md.

Metric	Performance
Agreement with the fp32 CPU reference, shipped sample kashiwanoha_dense (8 s ego plan, 88 neighbours)	ego max 2.0 cm / mean 0.8 cm; turn command identical; neighbours: median per-agent max 8.6 cm
Agreement, shipped sample straight_road	ego max 2.3 cm / mean 0.9 cm; turn command identical; neighbours 6.0 cm
Agreement, all 99 gated scenes (2 samples, 5 research scenes, 92 nuScenes-mini instants)	worst ego max 0.346 m / mean 0.154 m (gates 1.0 / 0.3 m; nuscenes/scene-0103_kf14); ego mean: median 1.3 cm, 95th percentile 6.3 cm; turn command identical 99 / 99; neighbours: median per-agent max ≤ 0.094 m (gate 1.5 m). First release: 0.313 / 0.143 m (two gated precision changes since, Caveats)
Agreement with an independent oracle: the research pipeline's ONNX Runtime outputs (raw x0), 92 nuScenes instants + the 33-plan scene-0061 sequence	worst ego max 0.346 m / mean 0.154 m, turn command identical 92 / 92; sequence: worst ego max 0.112 m / mean 0.055 m, turn 33 / 33; every instant within the gates
Module PCC vs the fp32 reference (encoder categories, encoding, teacher-forced decoder evaluation; gate 0.999)	≥ 0.999948 / 0.999976 / ≥ 0.9999995
Open-loop vs the nuScenes log, 92 instants (a sanity check against one human driver, not a planning metric)	p150 ADE / FDE at 8 s 4.75 / 11.87 m (CPU reference 4.74 / 11.87; constant velocity 4.99 / 13.06); turn command = logged blinker 88 / 92 (CPU 88 / 92)
Python model() call, shipped sample (host pre-processing, H2D, trace, D2H, host post-processing)	26.7 ms p50 (p99 27.5) · 37.4 plans/s (first release 117.9 ms)
Served /predict timing_ms.total (uvicorn on the host, the shipped sample)	37.2 ms median (min 36.7; of which JSON decode 8.6, model() 26.8; first release 123.1 ms)
Served client round trip, loopback (base64 .npz request, 0.15 MB)	41.6 ms median (first release 127.5 ms)
Device trace, one blocking plan (encoder + 11 DiT evaluations + 10 solver updates + turn head)	20.05 ms (bucket r96; straight_road r32 17.50, nuScenes scene-0103_kf14 r64 19.30; first release 102.13 ms for every scene)
Back-to-back trace replays, by agent bucket (neighbours)	20.00 ms per plan · 50.0 plans/s on the shipped sample (r96, 64-95); r32 (≤ 31) 17.44 · r64 19.25 · r128 21.11 · r192 22.30 · full (> 191) 26.65 ms; first release 102.04 ms for every scene
Host pre-processing · pack · host tensors · H2D · D2H · host post-processing	2.45 · 0.52 · 1.57 · 0.76 · 0.22 · 1.39 ms
from_pretrained load: empty JIT cache / warm cache (6 traces)	352 s / 12.9 s

All numbers in this table were measured with dispatch on the ETH cores, 1 command queue and a 12×10 compute grid on one p150, with the pinned numerics of serve.env. Accuracy is agreement with the fp32 CPU reference of the same Autoware network (same weights, same pre- and post-processing); no dataset-level accuracy is claimed: the paper's benchmark is nuPlan closed loop (an account-gated dataset and simulator, not run here), and the deployed v5.0 weights were trained by TIER IV on data that is not public, so no public benchmark is in-domain. The r128, r192 and full-capacity rows are the same-session values of OPT_REPORT.md round 5, reproduced by VERIFICATION_OPT_2026-10-11.md. Details: VERIFICATION_OPT_2026-10-11.md (the optimization rounds), VERIFICATION_2026-10-08.md (the first release), OPT_REPORT.md, OPT_BASELINE.md.

No GPU comparison: no GPU was available on the host where this port was built and measured, so this card makes no GPU speed claim. The reference rows are the port's own fp32 CPU reference on the same host (a correctness baseline, not a speed target). Autoware's CHANGELOG quotes 5.13 ms mean (300 runs) for an older single-step engine of this planner on an RTX PRO 6000 Blackwell with TensorRT (precision not stated); it is not like-for-like with this v5.0 multi-step port. p150 power was not measured, so no efficiency comparison is made.

Caveats

• Optimized release (5 optimization rounds, OPT_REPORT.md): 102.0 -> 20.0 ms per plan on the device for the shipped sample. What changed: explicit multi-core program configs for the encoder and decoder matmuls; custom generic_op kernels for the fp32 LayerNorm, the K-concatenated split matmul operands, the whole fp32 attention (scores in L1) and the score scale / mask / softmax; L1-resident intermediates in the decoder; exact compaction by agent buckets (one trace per bucket); vectorised host pre- and post-processing. The plan is still a sequence of ~1,400 device programs (1,418 at r96, kernel-bound: kernel 19.64 ms, op-to-op gaps 0.89 ms); no megakernel ships in this release (a persistent mixer / DiT megakernel is work in progress and not measured yet). What remains and what comes next: OPT_REPORT.md.
• Two of the optimizations change the numerics slightly, with the frozen gates green: the decoder split linears (round 2) and the encoder split linears (round 3) each accumulate their hi / lo products in one fp32 matmul instead of three. The 99-scene worst case moved from 0.313 / 0.143 m (ego max / mean) to 0.346 / 0.154 m, the gates are 1.0 / 0.3 m; scene by scene the error moves both ways. A held-out check on 50 further scenes (the 33-plan scene-0061 sequence, full-capacity and noisy-x_T scenes, every agent-bucket boundary) passed every gate (VERIFICATION_OPT_2026-10-11.md); its worst ego max is 0.507 m, on a synthetic scene with 192 neighbours. Every other step is bit-identical to its predecessor.
• Deployment status in Autoware: autoware_diffusion_planner is an alternative to the default rule-based planning stack, selected with planning_setting:=diffusion_planner (package README); it is aimed at Autoware's proposed new planning framework. This bundle is not a ROS 2 node (Python API and HTTP) and not a certified Autoware component; do not use it for safety-critical driving decisions or closed-loop vehicle control.
• Stateless API: the node's state between plans (the turn-indicator hold window, the RTC prefix and temperature of the initial solver state, the agent buffers and the ego history) is the client's ("What the caller keeps" in code/PYTHON.md). The node's guidance services (start / stop / centerline guidance) are off, as in the node's default.
• Precision policy of this release: fp32 residual streams and solver state; HiFi4 with fp32 accumulation for every matmul; the ego / neighbour pre-projection as a pad-relative fp32 island; split hi / lo matmuls (bf16 hi + fp32 lo parts, ~1e-5 relative, because a device fp32 matmul rounds its operands like TF32; computed as one fp32 matmul over the K-concatenated operand [x_hi | x_hi | x_lo | 1]) for the mixer inputs and every decoder linear; an fp32 LayerNorm (a fused custom kernel with fp32 statistics) in the mixers and the decoder (the fused ttnn.layer_norm loses the per-entity signal on the mixers' offset-dominated rows); fp32 matmul attention in the fusion encoder and the decoder (a fused kernel with the scores in L1); the turn head in fp32; the other weights and the hidden MLP activations of the mixers and the fusion encoder in bf16. The plan's sensitivity to these choices is chaotic per scene: with the first device round's numerics, one nuScenes instant (scene-0103_kf14) moved 0.35 m on average while the module PCCs differed only in the 5th decimal. So every numerics change is re-checked on all 99 scenes.
• Validation scope: the p150 output agrees with the fp32 CPU reference on 99 scenes (above). The two shipped samples and the five research scenes are synthetic-but-faithful scenes built with a Python port of the node's tensor construction; the 92 nuScenes instants are converted from nuScenes v1.0-mini, a domain the model never saw (Singapore and Boston, right-hand traffic in Boston, oracle tracks from 2 Hz annotations, no traffic-light states, no speed limits, stop areas instead of stop lines). On them the plans are plausible but conservative (moving plans about 17 % shorter than the logged drive); the open-loop numbers above are a sanity check against one human driver, not a planning metric.
• Neighbour predictions: the gate is the median over agents of each agent's max displacement, so single agents can differ more. On the shipped sample kashiwanoha_dense (p150 output vs the stored CPU reference, 2026-10-11) the per-agent max displacement is 8.6 cm median and 0.23 m at the 90th percentile; the worst of the 88 agents differs by 3.72 m. The ego plan is gated on its max and mean; neighbour paths only on that median.
• Documented deviations from the node: the output stays in base_link (the node transforms it to map with the ego pose); yaw is what tf2::getYaw reads from the node's quaternion of the unnormalised cos / sin rotation (it differs from atan2(sin, cos) when |(cos, sin)| ≠ 1, as in the node); the speed masks follow the node's TensorRT path (> FLT_EPSILON); the turn indicator is decided without the hold window; delay is accepted and ignored (the node's multi-step mode never reads it).
• Does not scale to multiple p150 in a mesh configuration. The build uses a 12×10 compute grid of Tensix cores: the dispatch functions move from one Tensix column to the ETH cores (patches/tt-metal-eth-dispatch.patch), so this build assumes that you do not need chip-to-chip ethernet communication.
• dispatch="worker" (server: DIFFUSION_PLANNER_DISPATCH=worker) is an A/B opt-in. On a p150 it gives an 11×10 grid (20.61 ms per replay on the shipped sample, 3 % slower than ETH; the 99 gated scenes give the same agreement numbers as ETH); if ETH dispatch is not available (tt-metal without the patch), the model falls back to it with a warning. The numbers on this card do not apply to that mode.
• Batch 1, one plan per request; requests are serialised on the chip. The shapes of the v5.0 export (320 neighbours, 140 lanes, 25 route lanes, 10 polygons, 60 line strings, 31 history and 80 future steps) and 10 DPM-Solver steps are compiled into the traces. The neighbour trunk of the encoder and the decoder run on the smallest agent bucket that holds the scene (one trace per bucket, exact: the outputs equal the full-capacity trace bit for bit), so the device time depends on the neighbour count (17.4-26.7 ms); the map entities (lanes, route, polygons, line strings) are still computed at full capacity in every plan.
• Not an OpenAI-compatible API; GET /v1/models is a stub so the tt-model ready card does not 404.
• p150 power was not measured, so no efficiency comparison is made.

Licensing

• Weights: AutowareFoundation/diffusion_planner at tag v5.0 (commit 423efde67f5414734da43a7ad856c17ceb8b51aa), Apache-2.0 per its model card. Not redistributed here: the package only points to them. The upstream card states that TIER IV trained the models on TIER IV synthetic and real driving data; the dataset composition is not publicly documented.
• Pre- and post-processing ported from autoware_universe planning/autoware_diffusion_planner (Apache-2.0).
• Port and serving code (code/): Apache-2.0. patches/tt-metal-eth-dispatch.patch and patches/tt-metal-reshape-rm-sys1419.patch modify tt-metal (Apache-2.0).
• Sample data: code/tt_diffusion_planner/samples/kashiwanoha_dense.npz is derived from the Apache-2.0 Lanelet2 map AutowareFoundation/map-carla-kashiwanoha (0.2.0) with a scripted ego, route and agents; straight_road.npz is a procedural scene generated by this repo. Both Apache-2.0, each with its stored CPU-reference output (*.reference.json). Only these redistributable samples ship; the nuScenes-derived planning instants of the accuracy tables are not in this repository.
• Demo media (media/, sources and changes in media/ATTRIBUTION.md):
  • nuScenes renders (media/*_NC.*), non-commercial, CC BY-NC-SA 4.0: Rendered from the nuScenes dataset (v1.0-mini, CAN bus expansion and map expansion v1.3), © Motional AD Inc., CC BY-NC-SA 4.0 and the nuScenes Terms of Use (https://www.nuscenes.org/terms-of-use). Non-commercial use only; adaptations under the same license. Motional does not endorse this work. Cite: H. Caesar et al., nuScenes: A Multimodal Dataset for Autonomous Driving, CVPR 2020.
  • Renders of the shipped samples: Apache-2.0 (kashiwanoha map: AutowareFoundation/map-carla-kashiwanoha@0.2.0, Apache-2.0).

Provenance

These are the exact sources the container image was built from:

component	built from
tt-metal	44d66500520fda9f2c7060c0f6b41ec48f7ab37e + patches/tt-metal-eth-dispatch.patch (sha256 08d0ddf6…45cc, 4 files) + patches/tt-metal-reshape-rm-sys1419.patch (sha256 6be07ce5…9cfa, 1 file) (dirty tree: the image includes both patches; the image build asserts both markers)
weights	AutowareFoundation/diffusion_planner@423efde67f5414734da43a7ad856c17ceb8b51aa (tag v5.0), files diffusion_planner_encoder.onnx, diffusion_planner_decoder.onnx, diffusion_planner_turn_indicator.onnx, diffusion_planner.param.json (sha256 2856886a…ca49, eb30c0c0…57ca, 07acfb58…a732, ee3145b6…a268, checked at load)
Autoware reference	autoware_universe 9ceaccf026c31ffc5319bc9eeb4bd7bede0af3fd (planning/autoware_diffusion_planner, package 0.53.0, multi_step mode)
shared package	ttaw 0.23.2, vendored as code/tt_diffusion_planner/ttaw from the Autoware ports' shared common repository at commit 60b6dd7 (code/tt_diffusion_planner/ttaw/VENDORED.json: version, commit and per-file sha256)
code/ digest (image)	5da22b97bbf89b03 (sha256, first 16 hex digits; built.code_sha256 of tt_kernel_manifest.json)
image	tt-model/diffusion-planner-p150:dde78ac2f0be (sha256:dde78ac2f0be5b7e637ddceba1a7c30fd832c2a50dd3e728acbf187f86354cf4)
base images	build stage ghcr.io/tenstorrent/tt-metal/tt-metalium/ubuntu-22.04-dev-amd64:latest @ sha256:df9d279c7f85c17c6fad982d196802682d669cca1b7ced9cbaad8181339cd5fc; runtime stage docker.io/library/ubuntu:22.04 @ sha256:5ec03bb3441e8b0bf3b4f9cd4629a1ae763010dc3035bb8da3ae6cf026486401 (tt-model's FROM tags float; these are the digests this build resolved, see build_info.json)
built	2026-10-11T03:53:34+00:00 by tt-model 0.1.0
